Elbow 45D LR 3" Sch.40 Buttweld ASTM A403 WP316

share with

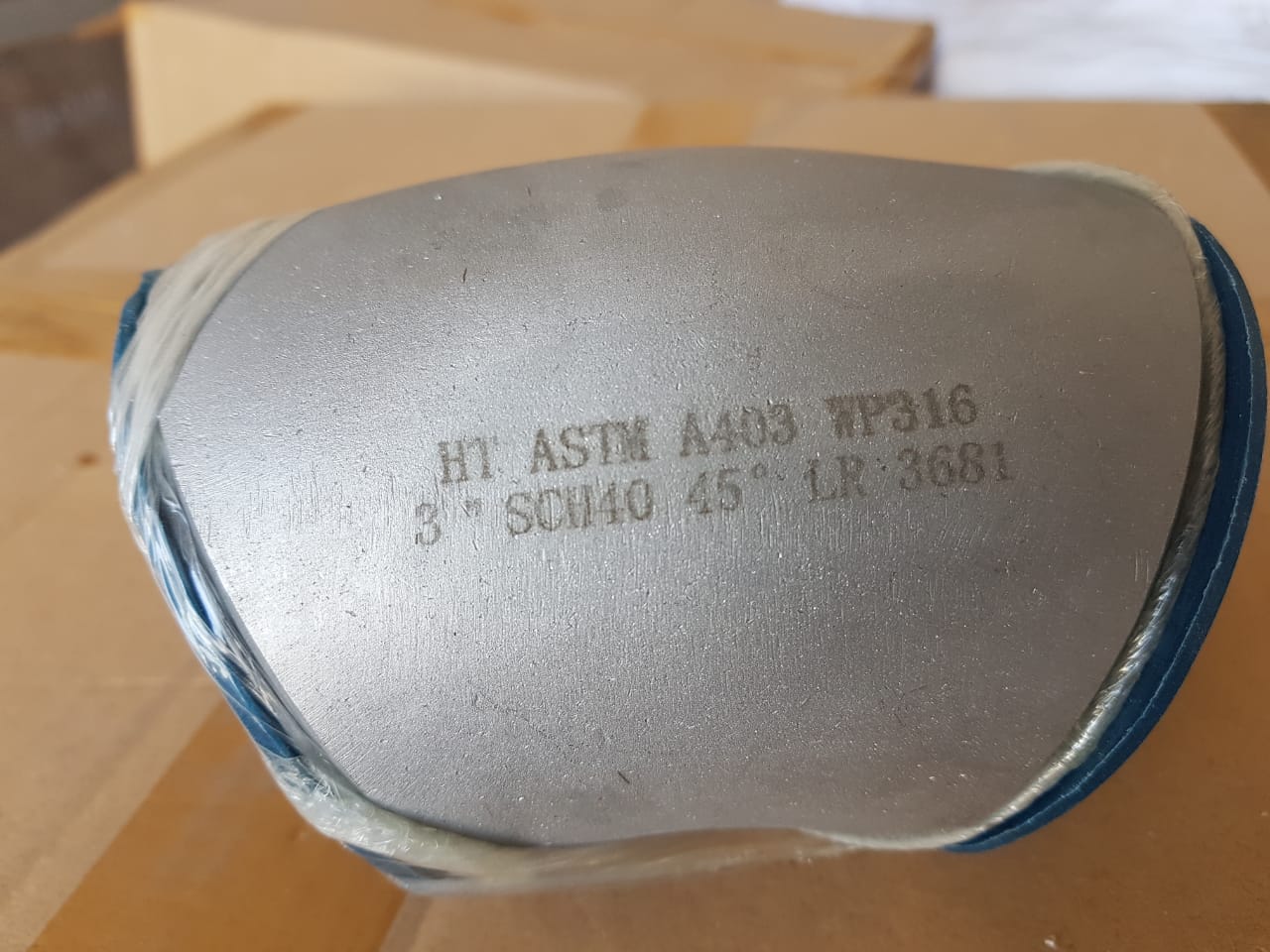

Elbow 45D LR 3" Sch.40 Buttweld ASTM A403 WP316



1. Order Information

DESCRIPTION Elbow 45D LR 3" Sch.40 Buttweld ASTM A403 WP316
QTY(Pcs) 10
Export Date 2019/06/20
Export Country Indonesia



2. ASTM A403 WP316L Pipe Fittings Specification



Stainless Steel ASTM A403 WP316L Fittings Specifications ASTM A403/ ASME SA403
ASTM A403 WP316L Pipe fittings Types
  • ASTM A403 Grade WP316L Buttweld Fitting
  • ASTM A403 WP316L Stainless Steel Seamless Fittings
  • Stainless Steel ASTM A403 WP316L ERW Fittings
  • ASTM A403 WP316L SS Welded Fittings
  • SS WP316L Fabricated Pipe Fittings
  • ASTM A403 Grade WP316L Bevel Ends Pipe Fittings
SS WP316L Pipe Fittings Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
ASTM A403 WP316L SS Pipe Fittings size ASTM A403 WP316L Seamless Butt Weld Fittings: 1/2" - 10"
ASTM A403 Grade WP316L Welded Butt Weld Fittings: 1/2" - 48"
Stainless Steel 316L Fittings Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) SA 403 WP316L Buttweld Fitting
316L Stainless Steel FittingsType DN15-DN1200
ASTM A403 WP316L Fittings Manufacturing process Push, Press, Forge, Cast, etc.
ASTM A403 316L Buttweld Fitting Connection Welding
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM A403 Gr WP316L Pipe Fitting
316L Stainless Steel Buttweld Pipe Fittings Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
ASTM A403 WP 316L Pipe Fittings Origin & Mills Japanese, Indian, USA, Korean, European, Ukraine, Russian
SS Grade WP316L Elbows Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D .
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Key markets and industries for SS Grade WP316L Pipe Fittings
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
Specialized manufacturer of Grade WP316L Stainless Steel 90º Elbows, 45º Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend
Application & uses of Industrial A403 316L Fittings
  • Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc
  • Schedule 10 fittings are an economical alternative for lower-pressure applications.
  • Schedule 40 fittings have a thicker wall for higher-pressure applications.
We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

3. ASTM A403 WP316L Chemical Composition

Grade C Mn Si P S Cr Mo Ni Fe
SS 316L 0.035 max 2.0 max 1.0 max 0.045 max 0.030 max 16.00 - 18.00 2.00 - 3.00 10.00 - 14.00 68.89 min




4. ASTM A403 WP316L mechanical properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1399 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %


5. Equivalent Grades for ASTM A403 WP316L Buttweld Pipe Fittings

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 316L 1.4404 / 1.4435 S31603 SUS 316L 316S11 / 316S13 03Ch17N14M3 / 03Ch17N14M2 Z3CND17‐11‐02 / Z3CND18‐14‐03 X2CrNiMo17-12-2 / X2CrNiMo18-14-3
