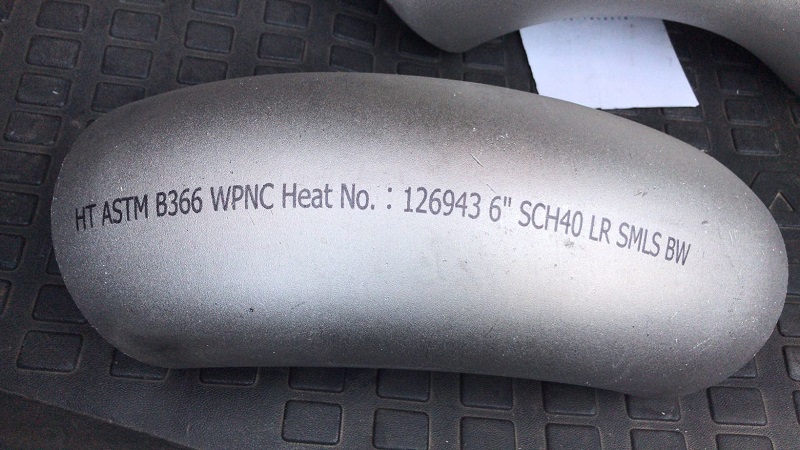

ASTM B366 WPNC 90 degree elbow 6" SCH40
1. Order information
| DESCRIPTION |
ASTM B366 WPNC 90 degree elbow 6" SCH40 |
| QTY(Pcs) |
1 |
| Export Date |
2019/11/05 |
| Export Country |
Iran |
2. ASTM B366 MONEL 400 PIPES FITTING SPECIFICATION
Specifications : ASTM B 366 / ASME SB 366
Standard : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : Seamless Butt Weld Fittings: 1/2" - 10", Welded Butt Weld Fittings: 1/2" - 48"
SCH :Sch 5 TO Sch XXS.
Type : Seamless / Welded / Fabricated
3. ALLOY 400 PIPES FITTING EQUIVALENT GRADE
| STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
BS |
GOST |
AFNOR |
EN |
| Monel 400 |
2.4360 |
N04400 |
NW 4400 |
NA 13 |
МНЖМц 28-2,5-1,5 |
NU-30M |
NiCu30Fe |
4. MONEL 400 PIPES FITTING CHEMICAL COMPOSITION
| Grade |
C |
Mn |
Si |
Cu |
S |
Ti |
Ni |
Al |
Fe |
| Monel 400 |
0.3 max |
2.0 max |
0.5 max |
28.0 – 34.0 |
0.02 max |
- |
63.0 min |
0.50 max |
1.0 – 2.5 |
5. ALLOY 400 PIPES FITTING MECHANICAL PROPERTIES
| Element |
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
| Monel 400 |
8.8 g/cm3 |
1350 °C (2460 °F) |
Psi – 80000 , MPa – 550 |
Psi – 35000 , MPa – 240 |
40 % |
