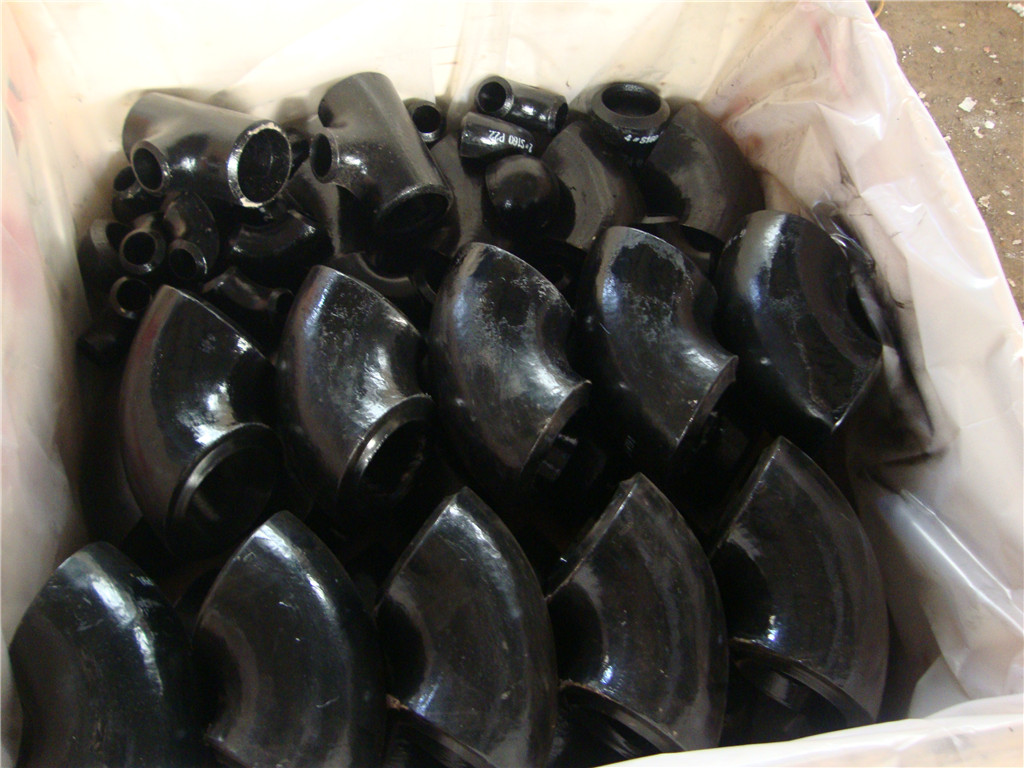

4" 90 degree BW ELBOW LR SCH80 ASTM A-234 WPB

share with
 1. 4" 90 degree BW ELBOW LR SCH80 ASTM A-234 WPB Order Details
DESCRIPTION

4" 90 degree BW ELBOW LR SCH80 ASTM A-234 WPB

QTY(Pcs) 50
Export Date 2019/03/09
Export Country Indonesia

2. ASTM A234 WPB Elbow Specification

ASTM A234 Gr WPB Pipe Elbow size CS A234 Seamless Pipe Elbow: 1/2" - 10"
CS ASTM A234 gr WPB Welded Pipe Elbow: 1/2" - 48"
ASTM A234 Grade WPB Elbow Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
ASTM A234 WPB Carbon Steel Elbow Type DN15-DN1200
Pipe Elbow Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom WPB Carbon Steel Elbows
Grade WPB Pipe Elbow Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D .
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Carbon Steel sch 40 A234 Pipe Elbow Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
CS ASTM A234 Pipe Elbow Manufacturing process Push, Press, Forge, Cast, etc.
ASTM A234 Pipe Elbow Standards 1-ASME B 16.9 for large Bore
2-ASME B 16.11 for small Bore (socket welded)
3-ASME B 16.25 for butt weld ends
4-ASME B 16.28 for small radius elbow
CS A234 Elbow Types
  • CS ASTM A234 gr WPB Butt Weld Pipe Elbow
  • CS A234 Seamless Elbow
  • Carbon Steel ASTM A234 WPB Elbow
  • ASTM A234 Gr WPB Welded Elbow
  • A234 Grade WPB Fabricated Pipe Elbow
  • CS ASTM A234 gr WPB Bevel Ends Elbow
  • CS ASTM A234 gr WPB Pipe Elbow
  • A234 Sr Elbow
  • A234 WPB Reducer Elbow
  • Elbow A234 Wpc
ASTM A234 WPB Elbow Surface treatment Sand blasting, Sand Rolling, Sand Blasting
CS ASTM A234 Gr WPB Pipe Elbow Origin & Mills Japanese, Indian, USA, Korean, European, Ukraine, Russian
Key markets and industries for Grade WPB Elbows
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
ASTM A234 Gr WPB Carbon Steel Buttweld Pipe Elbow Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Application & uses of Industrial CS A234 WPB Pipe Elbow
  • Used in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc
  • A234 WPB SCH 10 Elbow are an economical alternative for lower-pressure applications.
  • A234 WPB SCH 40 Elbow have a thicker wall for higher-pressure applications.
  • A234 WPB SCH 80 Elbow for petrochemical industry
How To Order
  • ELBOW 90DEG BW Schedule 10 ASTM A234 WPB Elbow, ASME B16.9
  • ELBOW 90DEG BW Schedule 20 ASTM A234 WPB Elbow, ASME B16.9
  • ELBOW 90DEG BW Schedule 40 ASTM A234 WPB Elbow, ASME B16.9
  • ELBOW 90DEG BW Schedule 80 ASTM A234 WPB Elbow, ASME B16.9
  • ELBOW 90DEG BW Schedule 120 ASTM A234 WPB Elbow, ASME B16.9
  • ELBOW 90DEG BW Schedule 160 ASTM A234 WPB Elbow, ASME B16.9
