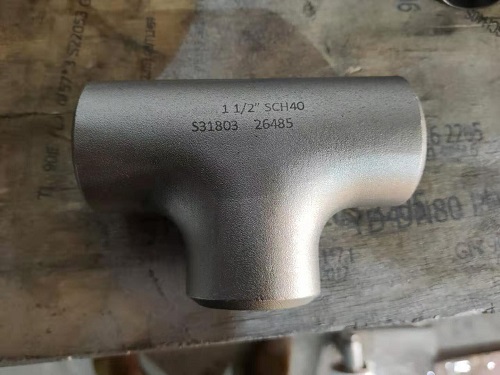

ASTM A815 S31803 equal tee 1 1/2" SCH40

share with

DESCRIPTION

 ASTM A815 S31803 equal tee 1 1/2" SCH40

QTY(Pcs) 3
Export Date 2020.Jan.11th
Export Country India



1. Duplex S31803 Pipe Fittings:

Material Specfication and Dimension Standards:

Product Category Material Specification as per ASME/ASTM Dimension Standards

LR SR Elbow Return Bend Pipe

ASME SA815/815M WPS31803, ASTM A815/815M WPS31803, ASME SA815/815M WPS31803W, ASTM A815/815M WPS31803W ASME B16.9, ANSI B16.9, ASME B16.28, ANSI B16.28, ANSI B16.25

2. Size Range:

  Seamless Welded
Elbows Upto 24" Upto 42"
Tees Upto 24" Upto 36"
Reducers Upto 24" Upto 48"
End Caps Upto 24"
Return Bends Upto 8"
Cross Upto 8" Upto 36"
Swage Nipple Upto 4"
Special Fittings: Piggable Bends, 3D, 5D, 10D etc. Customized Bends, Miter Bends As per customer drawings and datasheets
Thickness Sch 5, Sch 5s, Sch 10, Sch 10s, Sch 20, Sch 30, Sch 40s, Sch 40, Sch STD, Sch 60, Sch 80s, Sch 100, Sch 120, Sch XS, Sch XXS, Sch 160, upto 50mm in case of welded fittings

3. FORM:

  • Elbows in Long & Short Radius in 45 deg, 90 deg, 180 deg.
  • Return Bend, U Bend, Long Radius Bend.
  • Equal, Unequal Tee & Barred Tee.
  • Eccentric Reducer & Concentric Reducer.
  • Caps & Crosses.
  • Long & Short Stub End.
  • Swage Nipple & Barrel Nipple
  • Laterals

4. VALUE ADDED SERVICES

  • Hot Dipped Galvanizing
  • Epoxy & FBE Coating
  • Electro Polish



5. Grades:
Nickel Alloy
ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )
Stainless Steel
ASTM / ASME SA 403 GR WP "S" / "W" / " WX" 304 , 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347 H.
Duplex Steel
ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760.
Carbon Steel
ASTM / ASME A 234 WPB, WPC
ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Alloy Steel
ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91
Size:
Outer Diameter (D): D<=1220mm
Wall Thickness (T): T<=120mm
L/R Elbow( 90deg & 45deg & 180deg.),
S/R Elbow (90deg & 180deg.)
Pressure: SCH5 to SCH160
Manufacturing standard: ANSI, JIS, DIN, EN, API 5L, etc.
Bending Angle: Degree 15, 30, 45, 60, 90, 135, 180 and also could manufacture according the angles given by the clients.
End Bevel: According to the bevel of welding pipe fittings construction
Surface treatment: Shot blasted, rust-proof black oil
