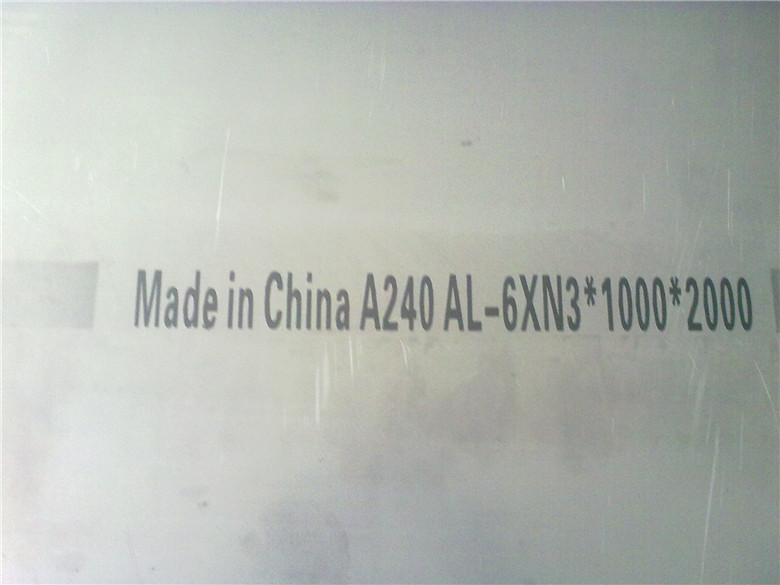

AL-6XN Stainless Steel UNS N08367

share with


Description
AL-6XN® is low carbon, nitrogen bearing super austenitic stainless steel. The alloy was designed to be a seawater resistant material and has been found to be resistant to a broad range of corrosive environments. Due to the alloy's corrosion resistance and high strength, AL-6XN® is a better choice than conventional duplex stainless alloy and more cost effective nickel-base alloys.

Chemistry Typical
Carbon: 0.03 max

Manganese: 2.00 max

Silicon: 1.00 max

Chromium: 20.00- 22.00

Nickel: 23.50- 25.50

Molybdenum: 6.00-7.00

Phosphorus: 0.04 max

Sulfur: 0.03 max

Copper: 0.75 max

Nitrogen: 0.18-0.25

Iron: Balance

Physical Properties
Density: 0.291 lb/in3, 8.06 g/cm3

Electrical Resistivity: ohm-cir-mil/ft (µohms-cm): 535 (89.0)

Specific Heat: BTU/lb-°F (J/kg-K)

70 °F (21 °C): 0.113 (474)

212 °F (100 °C): 0.118 (492)

392 °F (200 °C): 0.123 (514)

572 °F (300 °C): 0.128 (536)

752 °F (400 °C): 0.133 (557)

932 °F (500 °C): 0.138 (578)

1112 °F (600 °C): 0.146 (610)

1292 °F (700 °C): 0.149 (622)

1472 °F (800 °C): 0.151 (633)

1652 °F (900 °C): 0.153 (642)

1832 °F (1000 °C): 0.156 (651)

2012 °F (1100 °C): 0.158 (660)

2192 °F (1200 °C): 0.160 (668)

2372 °F (1300 °C): 0.162 (676)

Thermal Conductivity: BTU-in/hr-ft-°F (W/m•K)

200 °F (93 °C): 7.50 (12.98)

400 °F (204 °C): 8.76 (15.16)

600 °F (316 °C): 10.03 (17.36)

800 °F (427 °C): 11.23 (19.43)

1000 °F (538 °C): 12.55 (21.72)

1200 °F (649 °C): 13.91 (24.07)

1400 °F (760 °C): 14.76 (25.55)

1600 °F (871 °C): 15.64 (27.07)

1800 °F (982 °C): 16.32 (28.25)

2000 °F (1093 °C): 17.26 (29.87)

2200 °F (1204 °C): 17.52 (30.32)

2400 °F (1316 °C): 18.10 (18.63)

Magnetic Permeability: H= 200 Oersteds: Annealed: 1.0028 65% cold work: 1.0028

Melting Range: 2410 - 2550 °F (1320 - 1400 °C)

Forms
Coil - Sheet, Strip, Foil Wire - Profile, Round, Flat, Square

Mechanical Properties at Room Temperature Properties: Annealed Typical
Ultimate Tensile Strength: 112 KSI (770 MPa)

Yield Strength: 57 KSI (393 MPa)

Elongation: 44%

Hardness: Rb 88

Properties: Tempered
AL-6XN® can be cold worked to various tempers. Contact us for additional information.

Additional Properties
Corrosion Resistance
Refer to NACE (National Associate of Corrosion Engineers) for recommendations.

Finishes
# 1 - Hot rolled annealed and descaled. It is available in strip, foil and ribbon. It is used for applications where a smooth decorative finish is not required.

# 2D - Dull finish produced by cold rolling, annealing and descaling. Used for deep drawn parts and those parts that need to retain lubricants in the forming process. # 2B - Smooth finish produced by cold rolling, annealing and descaling. A light cold rolling pass is added after anneal with polished rolls giving it a brighter finish than 2D.

#BA- Bright annealed cold rolled and bright annealed

#CBA- Course bright annealed cold rolled matte finish and bright anneal

#2 - Cold Rolled

# 2BA- Smooth finish produced by cold rolling and bright annealing. A light pass using highly polished rolls produces a glossy finish. A 2BA finish may be used for lightly formed applications where a glossy finish is desired in the formed part. Polished - Various grit finish for specific polish finished requirements

* Not all finishes are available for all alloys - Consult sales for applicable finishes.

Wire Finishes
XC - Extra clean. Bright annealed or bright annealed and cold rolled. Grease - Ultra bright finish for decorative applications. Soap - Soap is not removed from tempered wire to act as a lubricant. * Contact Ulbrich Wire with special finish requests.

Heat Treatment
AL-6XN® is non hardenable by heat treatment.
