  • ASTM A234 WP91 equal Tee

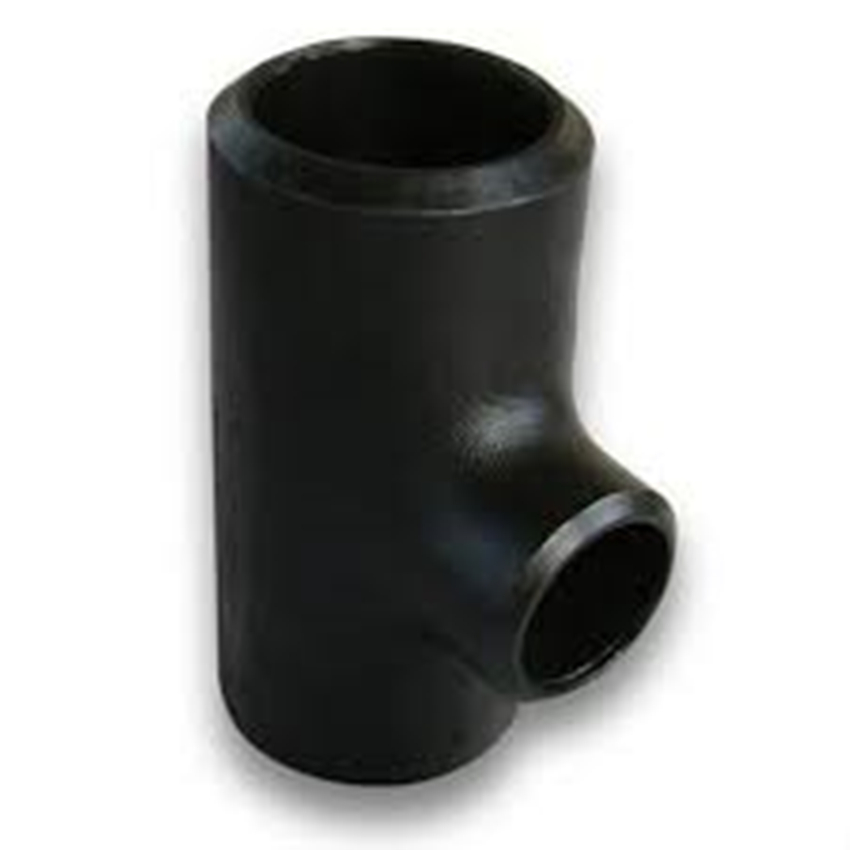

ASTM A234 WP91 equal Tee

  • Material:ASTM A234 WP91
  • production:equal Tee
  • Production standards:ASME B16.9

PRODUCT DESCRIPTION

ASTM/ASME SA234 WP91 WP11 WP22 WP9 Low Alloy Steel fittings elbow tee reducer

Common types of pipe tee

A pipe tee is a type of fitting that has a T shape and is used to join two or more plumbing pipes.
  • Equre tee (or straight tee), means the branch diameter of this tee is same with the main pipe (Run pipe) diameter of this tee.
  • Reducing tee is a type of pipe fitting in which the branch port size is smaller than the ports of the run.
  • Barred tee is used in pipelines that are pigged.
  • Lateral tee has a 45 degree branch from a pipeline.
  • Pipe cross is a fitting that used in the place where four pipes meet with the same diameter include:
    • Reducing cross used for connecting four pipes, the main pipes with the same size, but the dimensions of the branch diameter is smaller than the main pipes.
    • Equal cross in the place where four pipes meet with the same diameter.
  • Forged Tee Fittings are pipe fittings that be formed mainly by forging.

Size range: 1/2 to 72 inches

Pressure: SCH5 to SCH160


What is ASTM A234 WP91?

There are different standards and specifications involved. There are three major standards to cover major groups of nominal sizes. The range from 1/3 to 4 inches is governed by B16.11 standard where the B16.5 covers up to 24 inches, the B16.9 covers up to 48 inches and the B16.47 covers nominal sizes of up to 60 inches. There are also pressure classes such as 300, 600 and so on which govern the pressure containment capacities of the ASTM A234 WP91 Fittings made pipe fittings. It is not always necessary to use the A234 WP91 material made fittings in piping. Sometimes, an A234 WP91 Equivalent could be used to replace it depending on the requirement of the application. The fittings withstand high temperatures and pressures.



1.ASTM A234 WP91 Fittings Chemical Composition



Grade C Mn Si S P Cr Mo
A234 WP91 ≤0.15 ≤0.6 ≤0.5 ≤0.04 ≤0.03 4-6 0.44-0.65



2.ASTM A234 WP91 Fittings Mechanical Properties



Grade Tensile Strength (Mpa) Yield Strength (Mpa) Elongation %
A234 WP91 415 - 585 ≥205 ≥20



The standard specification for A234 WP91 covers both fittings that have been constructed with both seamless as well as welded construction. In the term A234 WP91, WP91 is known as one of the steel grades in this particular standard where W means weldable, while P stands for pressure and the number 91 is referred to as grade 91.



There are various kinds of forging or shaping operations that can be performed on the Alloy Steel Grade WP91 Fittings. Generally, processes such as treating these fittings by hammering, upsetting, rolling, bending, pressing, piercing, extruding, fusion welding, machining can be practised either individually or by using a combination of two or more of these processes to forge or shape these ASTM A234 Gr WP91 Fittings. The forming procedure must be practised such that it must not allow for the formation of any injurious imperfections in the fittings. In order to prevent injurious defects that could be caused by too rapid cooling, Fittings such as the ASTM A234 Grade WP91 Elbow, must be allowed to be cooled at a temperature range that is below the critical range under suitable conditions after forming them at an elevated temperature. Although special care is to be taken that the rate of cooling these A234 WP91 Equivalent is not more rapid as compared to the rate of cooling while still in the air.



3.ASTM A234 WP91 Pipe Fittings Specification format



ASME SA234 WP91 Pipe Fittings size ASTM A234 WP91 Seamless Butt Weld Fittings: 1/2" - 10"
ASTM A234 Gr WP91 Welded Butt Weld Fittings: 1/2" - 48"
ASME SA234 Grade WP91 Pipe Fittings Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
SA234 Grade WP91 Fittings Specifications ASTM A234/ ASME SA234
ASTM A234 WP91 Alloy Steel Fittings Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
ASME SA234 WP91 Alloy Steel FittingsType DN15-DN1200
ASME SA234 WP91 Alloy Steel Buttweld Pipe Fittings Connection Welding
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM A234 Grade WP91 Pipe Fittings
ASTM A234 WP91 Pipe fittings Types
  • SA234 Grade WP91 ERW Fittings
  • SA234 Gr WP91 Seamless Fittings
  • ASTM A234 Gr WP91 Bevel Ends Pipe Fittings
  • ASTM A234 Gr WP91 Buttweld Fittings
  • ASME SA234 Grade WP91 Fabricated Pipe Fittings
  • ASME SA234 WP91 Welded Fittings
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) A234 WP91 Buttweld Fittings
SA234 WP91 Alloy Steel Elbows Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D .
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Specialized manufacturer of A234 WP91 Alloy Steel 90º Elbows, 45º Elbow, Tee, Pipe Cross, Reducers, End Cap, Stub End, Pipe Bend


Alloy Steel WP91 Pipe Fittings Sizes & Schedule



  ASTM A234 WP91 Butt Weld Fittings
Alloy Steel ASTM A234 WP91 Fittings Types Alloy Steel A234 WP91 90º LRs, 90º SRs, 45º Elbows,
Alloy Steel Grade WP91 Concentric Reducers, Chrome Moly WP91 Eccentric Reducers,
Chrome Moly ASTM A234 WP91 Tees, Reducing Tees and Stub Ends Fittings
Sizes 1/2" – 12"
Schedules Sch 10S - 80S
