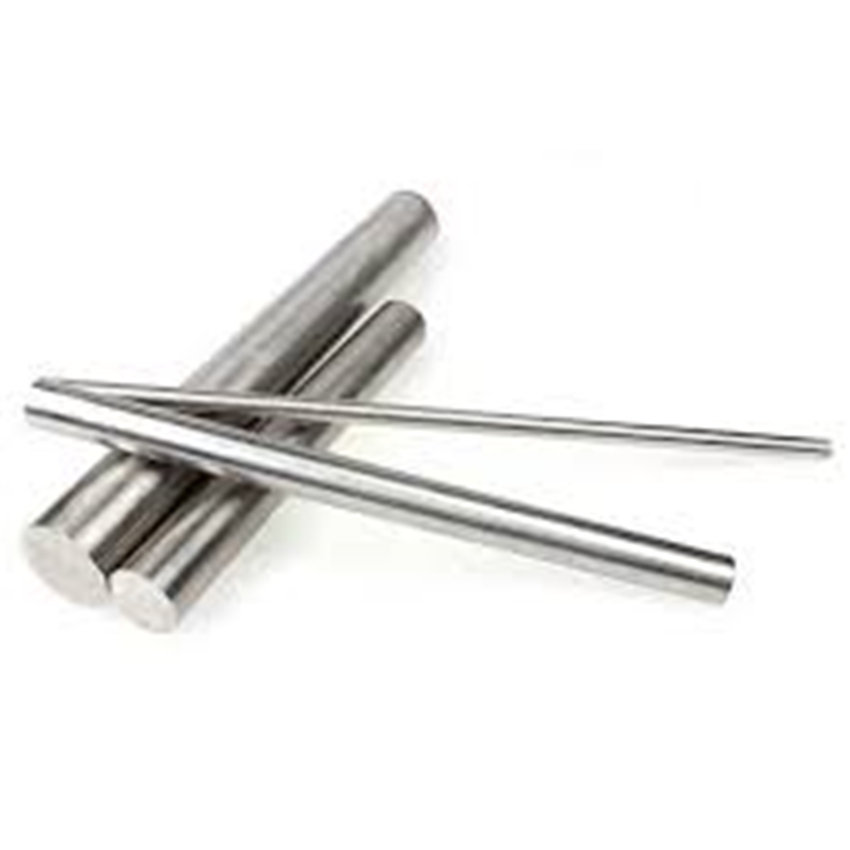

ASTM B160 Nickel 201 2.4068 Round Bars UNS N02201 Bright Bar rod
What is Nickel 201 round bar?
Nickel 201 Round Bar can be found in hardened and tempered form. It is a commercially unalloyed nickel that has excellent corrosion resistance and has a very low electrical resistivity. It also possesses other features like weldability, formability and high tensile strength. The nickel used in Nickel 201 Rod products are 99.96 % pure. The Nickel 201 Bar is used for a number of processing equipments, most importantly to maintain purity of products in handling foods, alkalies and synthetic fibers
Specification
Specifications : ASTM B160 / ASTM SB160
Dimensions : EN, DIN, JIS, ASTM, BS, ASME, AISI
Size : 5 mm To 500 mm
Diameter : 0.1 mm to 100 mm
Length : 100 mm To 3000 mm Long & Above
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Tolerance : H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
Form : Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc.
These are also referred as UNS N02201 Round Bars and WNR 2.4068 Round Bars. These Nickel 201 Round Bars (Nickel Alloy 201 Bars) are manufactured in adherence with the set industry standards using optimum quality basic material. Nickel 201 Flat Bars can also end up in surface water when it is a part of wastewater streams. The larger part of compounds from Nickel 201 Threaded Bars that are released to the environment will adsorb to sediment or soil particles and become immobile as a result. In acidic ground however,
201 Nickel Round Bar & Rod– Equivalent Grades
| STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
BS |
GOST |
AFNOR |
EN |
| Nickel 201 |
2.4068 |
N02201 |
NW 2201 |
NA 12 |
НП-2 |
|
LC-Ni 99 |
Nickel 201 Round Bar & Rod Chemical Composition
| Grade |
C |
Mn |
Si |
Cu |
S |
Fe |
Mo |
Ni |
Cr |
| Nickel 201 |
0.02 max |
0.35 max |
0.35 max |
0.25 max |
0.01 min |
0.40 max |
– |
99 min |
– |
Nickel 201 Round Bar & Rod Mechanical Properties
| nsity |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
| 8.9 g/cm3 |
1446 °C (2635 °F) |
Psi – 67,000 , MPa – 462 |
Psi – 21,500 , MPa – 148 |
45 % |
Nickel 201 Round Bar & Rod Application Industries
- Off-Shore Oil Drilling Companies
- Power Generation
- Petrochemicals
- Gas Processing
- Specialty Chemicals
- Pharmaceuticals
- Pharmaceutical Equipment
- Chemical Equipment
- Sea Water Equipment
- Heat Exchangers
- Condensers
- Pulp and Paper Industry
