  • duplex steel 316Lmod bars and rods

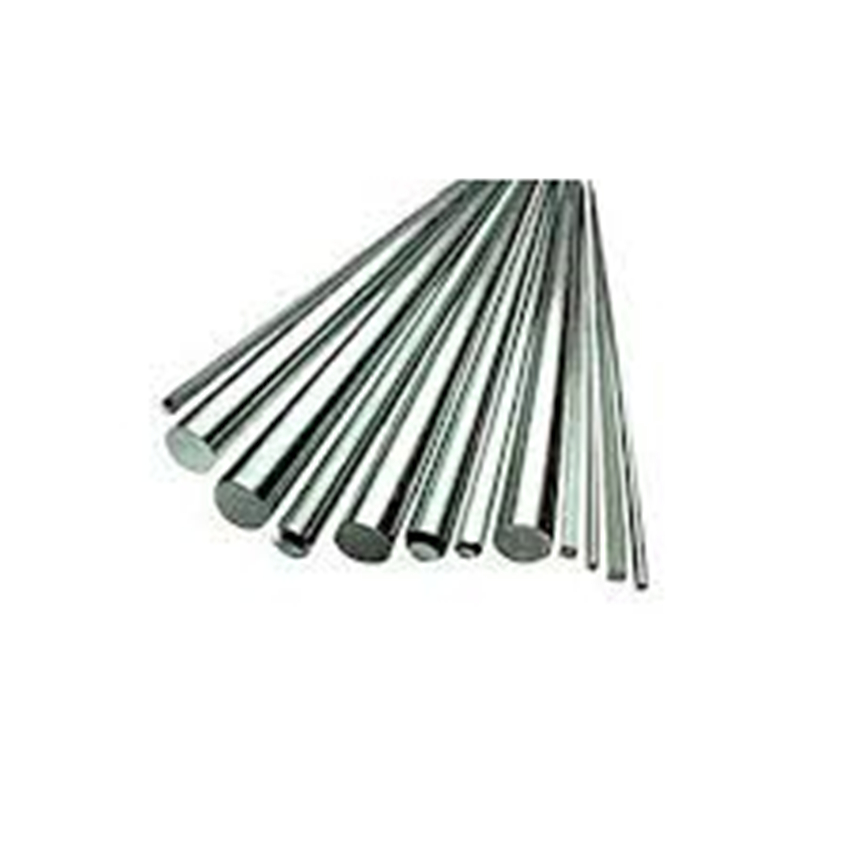

duplex steel 316Lmod bars and rods

  • duplex steel:316Lmod
  • Size:5~500mm
  • Length:As per clients' requirements.
  • Surface:Bright or Black

PRODUCT DESCRIPTION

316L Mod S31603 1.4435 X2CrNiMo18-14-3 duplex stainless steel round bar



316LMOD is 316L modified stainless steel with extra-low silicon content and substantial higher molybdenum contents
We could delivery 316LMOD forging material as per the standard of A-182
We use EAF+VOD-ESR melting methods to melt the material of 316LMOD
As per heat treatment of 316LMOD forged parts, it can be Heat from 1050 to 1150oC and water quench. This treatment ensures that all carbides are in solution.



The chemical composition of 316LMOD is as follows:



Grade The Element Max (%)
C Mn P S Si Cr Ni
316LMOD 0.03 2.00 0.045 0.22 1.00 17.0-18.5 13.0-15.0
Mo
2.00-3.00




The mechanical property of 316LMOD is as follows:





Tensile Strength

Min 77KSI Min 530MPA
Yield Strength Min 41KSI MIN 280MPA
Elongation Min 55%

316LMOD is designed for improved corrosion resistance properties in Ureacarbonate environments.



Due to special mechanical properties of 316LMOD forging parts, there are many wide uses as followings:
316LMOD forging rings and 316LMOD forging shafts that is used in used in the Furnace parts. Oil burner parts. Carburising boxes.
316LMOD forged shafts,316LMOD forging pipes, 316LMOD forged tubes ,forged tube sheets, forged flanges that are used separator and heat exchanger parts, in the paper industry, oil and gas production, compressor parts, seawater desalination plants



316LMOD forging shafts,316LMOD forging flanges ,316LMOD forged rings,316LMOD forging pipes that is used in Food Processing – equipment and storage,Petroleum Refining – polythionic acid service.



316LMOD forged bushing,316LMOD forged sleeves,316LMOD forged disks,316LMOD forged discs that is used in Offshore and onshore industry, such as subsea and deepwater offshore oil production systems, industrial air compressors, power generators and nitrogen generators



316LMOD open die forging parts, forged pieces,forging nozzles ,forged crankshaft that is used in Heat Treatment baskets and jigs. Heat exchangers. Welding filler wire and electrodes.



316LMOD forged valve stems, forged valve parts, forged valve seat ring,forged valve blocks,forged bodies that are used in ball valves, check valves, strainers ,globe valve, gate valve,Plug valve and so on



316LMOD forging rings, 316LMOD forging spindles, 316LMOD forging bars,316LMOD forging gears that are used in power transmission, turbine,gas compressor,gear boxes and so on



316LMOD forged products,316LMOD forged nozzles,316LMOD forging eccentric shaft that are used on Waste Treatment – thermal oxidizers,Pharmaceutical Production
