316L pipe fittings

Hastelloy C2000 Tubes are used in a broad range of industries including petrochemical processing, chemical processing equipment manufacturing, oil refineries and power plants.

Hastelloy C2000 is available in a variety of sizes and thicknesses, this type of nickel-chromium-molybdenum alloy is renowned for its superior strength and corrosion resistance.

AL6XN is a superaustenitic stainless steel with outstanding resistance to chloride pitting, crevice corrosion and stress corrosion cracking. AL6XN is a 6 moly alloy that was developed for and is used in highly aggressive environments. It has high nickel (24%), molybdenum (6.3%), nitrogen and chromium contents that give it excellent resistance to chloride stress corrosion cracking, chloride pitting, and exceptional general corrosion resistance. AL6XN is primarily used for its improved pitting and crevice corrosion resistance in chlorides. It is a formable and weldable stainless steel.

UNS N08367 also commonly referred to as alloy AL6XN is a low carbon, high purity, nitrogen-bearing “super-austenitic” nickel-molybdenum alloy with excellent resistance to chloride pitting and crevice corrosion.

SMO 254 Pipes can withstand high mechanical stress and Alloy 254 SMO Pipe high pressure work in high temperatures and corrosive environments.

This provides greatly enhanced resistance to sulfuric acid. It also has a high chromium content, to maximize its resistance to oxidizing chemicals and process streams contaminated with ferric ions and dissolved oxygen.

It is able to withstand a wide range of oxidizing and non-oxidizing chemicals, and exhibits outstanding resistance to pitting and crevice attack in the presence of chlorides and other halides.

It demonstrates good resistance to neutral and reducing environments. This alloy creates a tenacious oxide, protective film that does not spall off, but it retains superior oxidation resistance at soaring temperatures.

It is widely used in offshore oil and gas exploration/production and in heat exchangers in petrochemical/chemical processing.

Titanium’s density is about 60% that of stainless steel and nickel alloys, this weight saving makes it a popular choice in applications where this is critical such as aerospace.

Inconel 600 seamless tubes of standard UNS N06600 and ASTM B167 are the ones manufactured to sustain excessively high pressure and come with great warranty.

SCH40 Monel 400 Pipe is designated as Werkstoff Number 2.4360 and UNS N04400. Alloy 400 Pipe also known as Monel Alloy 400 Pipe, Monel 400 Pipe & Nickel Alloy 400 Pipe.

The pipes of seamless configurations have higher load-bearing capacity and strength over other grades.

Higher chromium, molybdenum and nitrogen content results in a Pitting Resistance Equivalent Number (PREN) > 40, providing superior pitting and crevice corrosion capabilities to austenitic and duplex stainless steels in virtually all corrosive media, and critical pitting temperature Above 50¡ãC .

Hastelloy Alloys Directory
The Corrosion Resistant HASTELLOY alloys are widely used by the chemical processing industries. The need for reliable performance leads to their acceptance and growth in the areas of energy, health and environmental, oil and gas, pharmaceutical and flue gas desulfurization industries.

Incoloy 800H Flange We have a strong reputation in the industry for producing high-quality flanges of different types that would suit the requirements of our clients. We manufacture Incoloy 800 Flanges which are reliable and high in quality. We use premium resources and advanced machinery for producing ASTM B564 UNS N08800 Incoloy 800 Flanges.

Alloy 800 Weld Neck Flanges We have a strong reputation in the industry for producing high-quality flanges of different types that would suit the requirements of our clients. We manufacture Incoloy 800 Flanges which are reliable and high in quality. We use premium resources and advanced machinery for producing ASTM B564 UNS N08800 Incoloy 800 Flanges.

Nickel 200 flanges The Nickel 200 Flanges are durable, dimensionally stable, and have a fine finish. Moreover, the ASTM B564 UNS N02200 Blind Flanges are resistant to corrosion in neutral and oxidizing environments, making them perfect for use in food handling equipment.

Another important feature of the N08800 Incoloy Alloy 800 Cold Rolled Plate is its excellent resistance to chlorine ion stress related corrosion cracking, to which the metal, like its other Inconel counterparts is virtually immune to.
Type Plate, Sheet,Strip Coil
Length 0~12m or as per your requirements
Width 0~2500mm or as per your requirements
Thickness 0.3~1200mm or as per your requirements

Inconel 600 is a nickel-chromium-iron alloy with excellent corrosion resistance, oxidation resistance and high strength at elevated temperatures. Due to its high nickel content, Inconel 600 is extremely resistant to chloride ion stress corrosion cracking. Age hardening is not required as Inconel 600 is hardened and strengthened by cold work only. The Inconel 600 can operate in temperatures as low as 700¡ãF (370¡ãC).
Standard SUS, AISI, DIN
Diameter 5~500mm
Length ¨Q12M or As Per Clients’ Requirements

Round bars are cold drawn and annealed, available in stock lengths or cut to size. Alloy round bars provide strength and corrosion resistance in a variety of environments and can be used in the frame, machine part manufacturing, food service and medical device industries.
Standard SUS, AISI, DIN
Diameter 5~500mm
Length ¨Q12M or As Per Clients’ Requirements

Many businesses prefer the fact that Inconel 600 is a very versatile alloy. Therefore the alloy is used in several key industries in various forms including the popular Inconel 600 Pipe. The construction of these pipes could be either welded or they could be seamless. There are benefits to using both. For e.g. the preference of an Inconel 600 Welded Pipe, is in applications where its economics plays a very important role. Though cheaper than the seamless constructed one, these pipes have a longitudinal seam, which could become susceptible to intergranular corrosion – if they are improperly processed. In a scenario, where the buyer requires the highest form of corrosion resistance and the ability to withstand a higher pressure, Inconel 600 Seamless Pipe is the best option.
Type Seamless Pipe
Seamless Tube
Welded Pipe
Welded Tube
SAW LSAW ERW EFW
Beveled End, Plain End”
Size OD: 1/2″” ~48″”
Thickness: SCH5~SCHXXS
Length :As per your requirement.”
Manufacturing technique Hot rolling /Hot work ,Cold rolling
Producing Standard ASME B36.10 ASME B36.20

For industrial purposes, in pipeline systems, we usually need to change the direction of transmission; regulate the flow of fluids (oil and gas, water, mud); open or close pipelines, etc. Therefore, to accomplish these activities, steel pipe fittings will be applied.

Nickel based 800 Incoloy Hexagonal Pipe is known to have a good resistance to corrosion. Specifically speaking, the Incoloy 800 Pipe offers sufficient resistance against both carburization as well as oxidation corrosion.

Carbon steel flange is a kind of rim formed at the end of the pipe when it is fixed on the pipe. It is used to seal the ends of pipes, valves or other connections. It has high tensile strength and is available with convex surfaces and supports for easy installation. It is an iron-carbon alloy containing up to 2.1 wt.% carbon. Carbon steel does not have minimum specified levels of other alloying elements, but it usually contains manganese.

UNS S32205 Duplex Steel ASME SA182 Butt Weld Flanges are suitable for seawater and power generation equipment because their smooth surfaces can withstand temperatures up to 600¡ãF, while also having excellent flow characteristics.

Hastelloy C-276 is a Ni Mo CR superalloy added with tungsten, which has excellent corrosion resistance in a wide range of harsh environments. The high content of Ni and Mo makes the Ni steel alloy particularly resistant to pitting and crevice corrosion in reducing environment, while CR transfers the performance of anti-oxidation medium.

Although molybdenum is a good element, excessive use of it may reduce the creep ductility of Gr F11 plate flanges. Graphitization and decomposition of iron carbide may occur when the temperature exceeds 500 degrees Celsius. Chromium has been added to SA A182 F11 alloy steel CL.2 forged pipe flanges to prevent creep ductility reduction and graphitization. In addition, the added chromium also provides oxidation resistance.

Duplex steel flanges are widely used in the used engineering, machinery and automotive industries. Duplex Steel S31803 Lap Flanges are ideal for applications requiring better corrosion resistance than Type 316 and good high temperature strength. We have Duplex Steel S31803 / S32205 Flanges in stock. Duplex steel flanges are commonly used in chemical, petrochemical, and power industries.

Nickel 200 is a solid solution strengthened metal. Nickel 200 Bar Stock contains 99.6% wrought nickel by weight and is considered commercially pure nickel. DIN 2.4066 Bar has good mechanical and physical properties. For example, ASTM B160 N02200 has excellent resistance to many corrosive compounds as well as corrosive environments. Meanwhile, Nickel 200 is a solid solution strengthened wrought alloy that can be designed as round bars and rods. These two components are used interchangeably and can be distinguished from certain key functions.

Nickel-copper-based alloy 400 Monel 2.4360 cold drawn rod is virtually immune to chloride stress-related corrosion cracking when exposed to corrosive media in typical environments. Monel 400 is a copper and nickel based alloy that is popular today due to its high performance. The alloy has excellent acid and alkali resistance. In addition, it has good tensile strength, ductility, excellent thermal conductivity, and can be hardened by cold work. Additionally, it can be used in applications with temperatures ranging from minus to 538 degrees Celsius.

Nickel Alloy 400 and Monel 400, also known as UNS N04400, is a ductile nickel-copper-based alloy consisting primarily of two-thirds nickel and one-third copper. Nickel Alloy 400 is known for its resistance to a variety of corrosive conditions, including alkalis (or acids), salt water, hydrofluoric acid, and sulfuric acid. Since Monel 400 or Alloy 400 is a cold worked metal, this alloy has high hardness, stiffness and strength. By cold working ASTM B164 UNS N04400 bar stock, the alloy is subjected to higher levels of mechanical stress, which in turn causes changes in the alloy’s microstructure.

Inconel 600 round bar is a nickel-based alloy with benign carburization and excellent corrosion resistance at high temperatures. Inconel 600 round bars are effective against drying Cl2 and many other different gases at mild and high temperatures. Alloy 600 bar is a nickel-chromium alloy with good oxidation resistance and resistance to chloride pressure decomposition cracking, high cleanliness water corrosion and acid oxidation at elevated temperatures.

Nilo / Alloy K W.Nr.: 1.3981
UNS: K94610 ASTM F15
Fixed-expansion glass-encapsulated iron-nickel-cobalt alloys, Kovar alloys, have a linear thermal expansion coefficient similar to that of hard glass within a certain temperature range
For mating sealing with hard glass

Nilo Alloy 36, W.Nr 1.3912, Invar 36® is a nickel-iron, low controlled expansion alloy that contains 36% nickel and possesses a rate of thermal expansion approximately one-tenth that of carbon steel.
Invar 36 Specifications: UNS K93600, W.Nr 1.3912

Common Trade Names: Nickel Alloy 36, Invar 36®, Nilo 6®, Pernifer 6®
Invar 36® is a nickel-iron, low expansion alloy that contains 36% nickel, Invar 36 has a low coefficient of expansion from cryogenic temperatures to about +500°F (260°C).
Invar 36 Tube OD:0.2-6mm, WT: 0.02-2mm

Flange is the parts which connects two pipe ends, flange connection is defined by the flange, gasket and bolt three are connected as a group of combined sealing structure of the detachable connection. The gasket is added between the two flanges and then fastened by bolts. Different pressure flange, thickness is different, and the bolts they use are different, when pump and valve connect with pipe, the parts of the equipment are also made of the corresponding flange shape, also known as flange connection, usually closured bolted connection parts are also known as flanges, such as the connection of ventilation pipe, this kind of parts can be called “flange type part”, but this connection is only part of a device, such as the connection between flange and water pump, it’s not inapposite to call water pump as flange type parts,but relative small valve,it can be called as flange type parts .

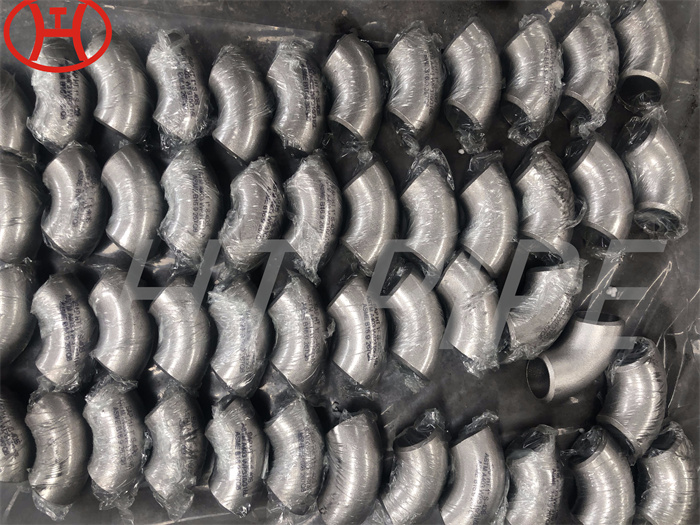

Stainless Steel 316L is an extra-low carbon version of the grade 316.

316L elbow minimises harmful carbide precipitation due to welding.

316L elbow is tested well on various quality parameters. Stainless Steel 316L Socketweld Pipe Elbows are durable and are highly resistant to corrosion.

316L elbow is particularly useful in severe corrosive conditions as it is non-magnetic and austenitic stainless steel. It offers brilliant resistance to oxidation and pitting. Pipe Fittings SS 316 /316L is ideal for many industrial processes that require a high resistance in harsh environments. These tubular fittings can withstand many acidic solvents, chemicals as well as chloride pitting. We are widely known for delivering products according to our esteemed customers’ urgent requirements.

The ASTM A403 WP316L grade is a wrought carbon grade that possesses excellent toughness and offers higher creep and stress rupture properties.

ASTM A 403 WP 316L is very durable across acidic and chemical toxicants. The grade has a specific thermal capacity of 500 at 20/kg K. The robust A403 WP316L module has a minimum tensile strength of 485mpa with a minimum yield strength of 170mpa and can be elongated by 40% in the system.

We assemble SS 316 / 316L pipe connectors with premium quality that can withstand high pressure and temperature. For the fabrication of these pipe fittings, we select the premium quality raw material. These fittings are of excellent quality, such as perfect finish, durability, excellent pitting resistance, low maintenance, and robust construction.

HT PIPE has an excellent production company for designing and developing superior Pipe Fittings SS 316/316L. During the testing and production phases, our expert team examines strictly SS 316/316L buttweld pipe fittings.

Class designations are also utilized to indicate the nondestructive test method and extent of nondestructive examination. A general summary of the fitting classes applicable to all WP grades of stainless steel follows. There are no classes for the CR grades.

316L Pipe Fittings the low carbon version of 316 and is immune from sensitisation (grain boundary carbide precipitation). Thus it is extensively used in heavy gauge welded components (over about 6mm). There is commonly no appreciable price difference between 316 and 316L stainless steel.

Type 316L stainless steel in a molybdenum bearing austenitic.

It is more resistant to general corrosion and pitting than conventional nickel chromium stainless steels such as 302-304.

316L stainless steel possesses less carbon and molybdenum than typical 316 steel, which gives the two alloys different characteristics.

Stainless steel is also composed of at least 10.5% chromium, a metallic element that gives the metal its finish and superior corrosion resistance.

Stainless steel is ideal for long-term applications that will face the elements, moisture, and potentially corrosive chemicals.

It¡¯s also ideal for sensitive industries such as food preparation and pharmaceuticals, as the risk of contamination is much lower.

316L has a lower proportion of carbon in its composition.

To qualify as 316L stainless steel, the amount of carbon cannot exceed 0.03%. This decreases the risk of carbon precipitation, making it a better option for welding to ensure maximum corrosion resistance.

316L is the superior choice for high corrosion and high temperature applications. Since 316L contains less carbon than 316, it has better intergranular corrosion resistance, meaning its welds won¡¯t decay, unlike with 316 stainless steel.

Although 316L contains less carbon, 316 and 316L stainless steels cost approximately the same.

316L steel is more susceptible to gaining some degree of magnetism.

316L is popular for pharmaceutical and photography equipment because it can withstand welding and corrosive chemicals.

Grade 316L, the low carbon version of 316 and is immune from sensitization (grain boundary carbide precipitation).

It is extensively used in heavy gauge welded components (over about 6mm). There is commonly no appreciable price difference between 316 and 316L stainless steel.

The austenitic structure also gives these grades excellent toughness, even down to cryogenic temperatures.

Compared to chromium-nickel austenitic stainless steels, 316L stainless steel offers higher creep, stress to rupture and tensile strength at elevated temperatures.

A butt weld pipe fitting is designed to be welded on site at its end(s) to connect pipe(s) together and allow change in direction or pipe diameter, or branching or ending.

This fitting then becomes part of a system for transporting fluids (oil, gas, steam, chemicals, …) in a safe and efficient manner, over short or long distances.

Stainless steel is an alloy of iron that is resistant to rusting and corrosion. It contains at least 11% chromium and may contain elements such as carbon, other nonmetals and metals to obtain other desired properties. Stainless steel’s resistance to corrosion results from the chromium, which forms a passive film that can protect the material and self-heal in the presence of oxygen
Completely and infinitely recyclable, stainless steel is the ¡°green material¡± par excellence. In fact, within the construction sector, its actual recovery rate is close to 100%.
Stainless steel is also environmentally neutral and inert, and its longevity ensures it meets the needs of sustainable construction. Furthermore, it does not leach compounds that could modify its composition when in contact with elements like water.
Stainless steel must contain at least 10.5 percent chromium. Depending on the grade, it may contain much higher chromium levels, and additional alloying ingredients like molybdenum, nickel, titanium, aluminum, copper, nitrogen, phosphorous or selenium.
In addition to these environmental benefits, stainless steel is also aesthetically appealing, extremely hygienic, easy to maintain, highly durable and offers a wide variety of aspects. As a result, stainless steel can be found in many everyday objects. It also plays a prominent role in an array of industries, including energy, transportation, building, research, medicine, food and logistics.

Strength and toughness indicators are among the best among all steels. Its most prominent advantage is corrosion resistance. Stainless steel must be used in highly corrosive occasions such as chemical papermaking. Of course, the cost is also higher!

Pipe caps are used to connect pipes of different diameters and are widely used in various chemical, construction industries, paper, cement and shipyards.
