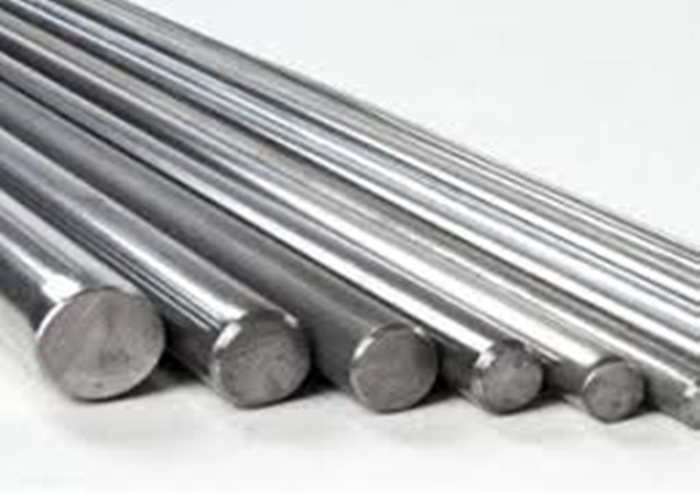

  • stainless steel 310S bars and rods

stainless steel 310S bars and rods

  • alloy steel:310S
  • Size:5~500mm
  • Length:As per clients' requirements.
  • Surface:Bright or Black

PRODUCT DESCRIPTION

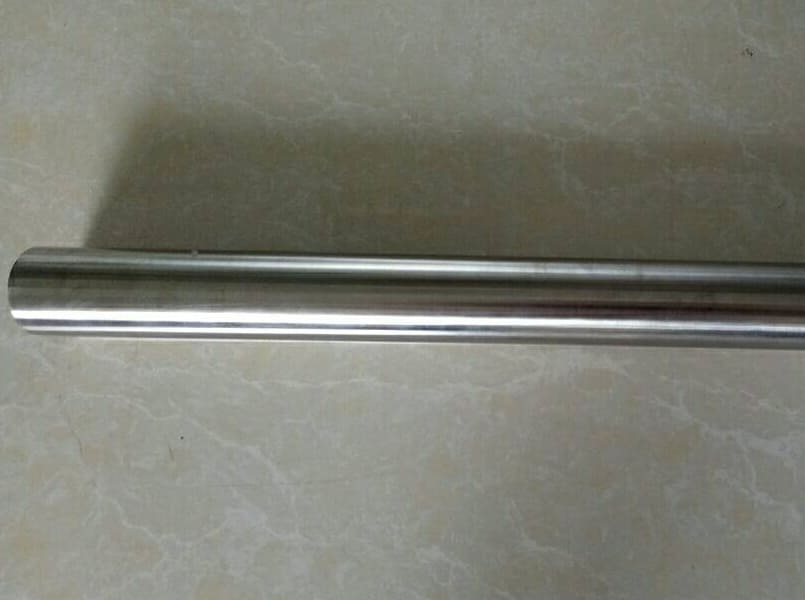

1.4845 S31008 SS 310S stainless steel 310S bars and rods round bar



Stainless Steel 310/310S Bars (SS 310/310S Bars) are used for different business endeavors, for instance, Food Processing, Chemical Industry, Brewing, Pharmaceuticals, Petrochemicals, to say the least. Stainless Steel 309/310/310S Rods (SS 310/310S Rods) is used for a couple of utilizations, for instance, in Condensers, Pressure Vessels, Heat Exchangers, Flanges and fittings, Pipelines, Valves Concerning national and universal general nature of raw materials, we are offering these UNS S31000/S31008 Round Bars and Rods, Stainless Steel 310/310S Round Bars, Stainless Steel UNS S30900 Round Bars, ASTM A276 SS 310/310S Bright & Black Round Bar. Generally called WNR 1.4845 Bars and Rods in adjusted sizes and thicknesses as per specific demands by our respected worldwide clients at business sectors.

310 / 310S is an austenitic warmth safe composite with oxidation imperviousness to 1900°F under consistent temperature conditions. At the point when incessant warm cycling is included, the compound is impervious to around 1850°F. The high chromium and generally low nickel substance of 309 give great imperviousness to high temperature sulfur bearing climates.

Product Features:

  • Corrosion resistant
  • Accurate dimensions
  • Can sustain high pressure & temperature load
  • Rust proof finish
  • Smooth transition from flange thickness to pipe
  • Ensure excellent stress distribution

Specification:

Standards 310 / 1.4841, 310S / 1.4845
Designation ASTM, ASME, AISI A 276 , SA 276, A 479, SA 479, ASTM, ASME A276/SA 479
Range 3 MM TO 350 MM DIA
Finish Bright, Polish & Black
Form Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc.

Material & Grade :

Stainless Steel :
Grade: 304, 304L, 304H, 309, 309S, 316, 316L, 316H, 310, 310S, 317, 317L, 321, 347, 904L

Chemical Composition :

ASTM A276 SS 310/310S Bars Equivalent Grades
STANDARD WERKSTOFF NR. UNS
SS 310 1.4841 S31000
SS 310S 1.4845 S31008



  SS 310 SS 310S
Ni 19 – 22 19 – 22
Cr 24 – 26 24 – 26
C 0.25 max 0.08 max
Fe Balance
Mn 2 max 2 max
Si 1.50 max 1
S 0.03 max 0.03 max
P 0.045 max 0.045 max

Mechanical Properties :

Tensile Strength Psi – 75000 , MPa – 515
Yield Strength (0.2%Offset) Psi – 30000 , MPa – 205
Elongation 35 %

Physical Properties:

Density 8.0 g/cm3
Melting Point 1454 °C (2650 °F)

Other grades also available :

Monel :
Grade: Monel 400, Monel K500, Monel R-405
Nickel :
Grade: Nickel 200, Nickel 201
Inconel :
Grade: Inconel 600, Inconel 601, Inconel 625, Inconel 718
Incoloy :
Grade: Incoloy 800, Incoloy 800H, INCOLOY 800HT
Hastalloy :
Grade: Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X
Titanium :
Grade: Gr1, Gr2, Gr3, Gr5, Gr7, Gr11
Carbon Steel :
Grade: WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Duplex Steel:
Grade: UNS F44, F45, F51, F53, F55, F60, F61
Alloy Steel:
Grade : WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Product Usage & Application :



  • Useful in Paper & Pulp Companies
  • Useful in High Pressure Applications
  • Useful in Oil and Gas Industry
  • Useful in Chemical Refinery
  • Useful in Pipeline
  • Useful in High Temperature Application
  • Useful in Water Pipe Line
  • Useful in Nuclear Power Plants
  • Useful in Food Processing and Dairy Industries
  • Useful in Boiler & Heat Exchangers
