Socket Weld SW Flange

  • Type: SW Flange
  • Class: 150#-2500#, 150LBS-2500LBS
  • Size: 1/2"(15NB) to 3"(80NB)
  • Service: Welding, Fabricated, Customized

Socket Weld Flange SW Flange

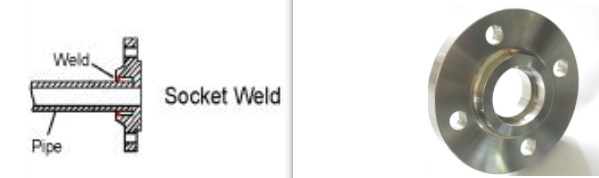

Socket welding flange refers to the flange where the end of the pipe is inserted into the flange ring step, and the pipe end and the outside are welded. Socket-weld flanges are typically used on smaller sizes of high pressure pipes. There are two types with neck and without neck. The flange with neck pipe has good rigidity, small welding deformation and good sealing performance. It can be used in occasions where the pressure is 1.0~10.0MPa. Type B flanges for vessels are also socket welding flanges, which are used in occasions with higher sealing requirements. When designing, the socket welding flange can be checked according to the integral flange. The size is up to 3", the pressure is up to 1500#.

We HT PIPE is the manufacture that provide all kinds of  steel flanges like Socket Weld Flanges, Blind Flanges, Plate flat Flanges, Weld Neck Flanges, Slip On Flanges, and so on, and also other special flanges according to the client's requirement.
Socket Weld SW Flange Specification:
Standard Type Class Size
ASME B16.5 WN/LWN/SO/Blind/Lap Joint 150#-2500# 1/2"-24"(Except Blind Flange 2500lb 1/2"-12")
Sealing Surface RF FF RTJ TF GF LF LM
Flange Face Finish Stock Finish/Spiral Serrated/Concentric Serrated/Smooth Finish(Ra 3.2 and 6.3 micrometers)
125-250 AARH(it is called smooth finish)
250-500 AARH(it is called stock finish)
Coating Vanish, yellow paint, anti-rust oil, galvanizing etc
socket weld flange surfce coating treatment

Socket Weld SW Flange Material Grades:

Carbon Steel ASTM /ASME A/SA105(N), A350 LF2/LF3, A694 F52, F56, F60, F65, F70
Alloy Steel ASTM/ASME A/SA 182  F5, F9, F11, F22, F91
Stainless Steel ASTM/ASME A/SA 182 F304, 304L, 304H, 310H, 316, 316H, 316L,
316Ti, 317, 317L, 321, 321H, 347, 347H, 904L
Duplex and
Super Duplex
ASTM/ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61,
S31803, S32205, S32550, S31254, SMO254, S32750, S32760, S32950
Nickel Alloy Steel ASTM/ASME B/SB 564 UNS N02200(NICKEL 200), UNS N04400, (MONEL 400),
UNS N08825( INCOLOY 825), UNS N06600(INCONEL 600), UNS N06601(INCONEL 601),
UNS N06625(INCONEL 625), UNS N10276(HASTELLOY C276)
ASTM/ASME B/SB160 UNS N02201(NICKEL 201),  ASTM B/SB472 UNS N08020(Alloy 20)
Copper Alloy ASTM/ASME B/SB151 UNS N07060, 71500, C70600(CuNi 90/10), C71500(CuNi 70/30)
Titanium ASTM/ASME B/SB381 Grade 2, Grade 5, Grade 7
Manufacturer, exporter & supplier of ASME/ANSI B16.5 Carbon steel Socket Weld Flanges, Alloy steel Socket Weld Flanges, Nickel alloy steel Socket Weld Flanges,  Stainless steel Socket Weld Flanges, Duplex steel Socket Weld Flanges, ASTM A105/105N, ASTM A350 Lf2, ASTM A694, ASTM A182, ASTM B564 Socket Weld Flanges manufaturer in Zhengzhou HT PIPE.
