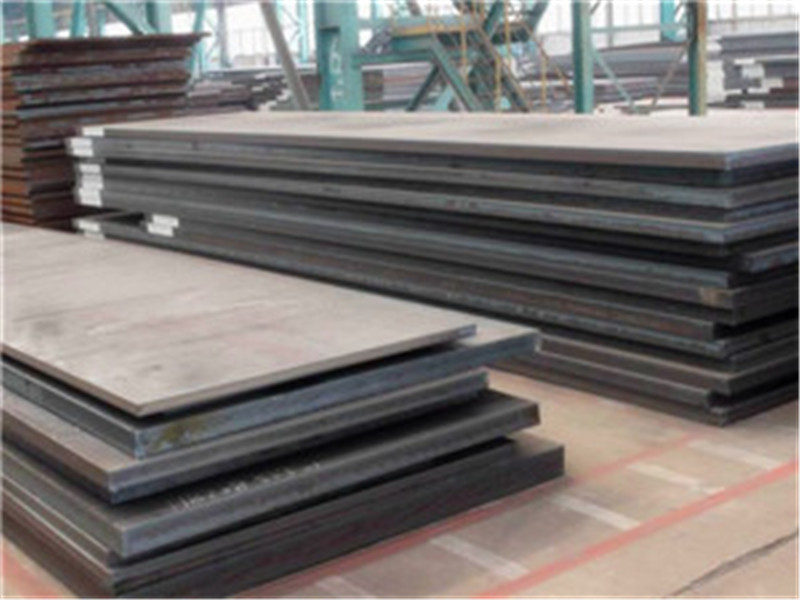

Super Duplex steel Plate/Sheet/Coil

  • Material: ASTM A240 S32750, S32760
  • Width: 0~2500mm or as per your requirements
  • Length: 0~12m or as per your requirements
  • Thickness: 0.3~1200mm or as per your requirements

PRODUCT DESCRIPTION

Super duplex stainless steel is a variation of the duplex steel alloy,  The higher chromium and molybdenum content of Super Duplex compare to Duplex makes it extremely resistant to uniform corrosion by organic acids like formic and acetic acid. Super Duplex steel also shows good strength and ability to work at low temperature. Additionally, they show toughness and corrosion resistance features.

HT PIPE is a manufacturer, exporter, and supplier of Super Duplex steel sheets, plates, and coils. Super Duplex S32750 Sheet Supplier, Super Duplex Steel S32750 Sheets, Super Duplex Steel S32760 Sheets, Super Duplex S32760 Plates Supplier, Super Duplex S32750 Plates, Super Duplex S32760 Coils Manufacturer, Super Duplex S32760 Plates, Super Duplex S32750 Plates Manufacturer, Super Duplex S32750 Plates Supplier, Super Duplex S32750 Coils Manufacturer, Super Duplex S32760 Coils Supplier in China.

S32750(2507) and S32760 Super Duplex steel plates Chemical Composition:

Grade C≤ Mn≤ P≤ S≤ Si≤ Ni Cr Mo Cu
S32750 0.03 1.2 0.035 0.02 0.8 6.0-8.0 24.0-26.0 3.0-5.0 0.24-0.32 0.5
S32760 0.05 1.0 0.03 0.01 1.0 6.0-8.0 24.0-26.0 3.0-4.0 0.20-0.30  0.5-1.0

S32750 and S32760 Duplex steel plates Mechanical Properties:
Mechanical properties Tensile, min, ksi[MPa] Yield, min, ksi[MPa] Elongation, %(min) Hardness, HB(max)
S32750 116 [800] 80 [550] 15 300
S32760 109 [750] 80 [550] 25 300
Grades Density (g/cm 3) Density (lb/in 3) Melting Point (°C) Melting Point (°F)
S31803 / S32205 7.8 0.281 1350 2460

Duplex Steel S31803 / S32205 Sheets, Plates & Coils Equivalent Grades:

STANDARD WERKSTOFF NR. UNS
Super Duplex S32750 1.441 S32750
Super Duplex S32760 1.4501 S32760
super duplex steel sheetsuper duplex steel sheet s32750 steel plate supplierS32750 steel plate supplier S32750 steel coil supplier
s32760 steel coilS32760 steel coil s32760 steel plateS32760 steel plate Duplex 2507 steel plate

Surface: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching.

VALUE ADDED SERVICES:
Cutting
Bending
Forging
Rolling
Heat Treatment
Fabrication
Applications industries:
Transport, storage and chemical processing
Processing equipment
High chloride and marine environments
Oil and gas exploration
Paper machines, liquor tanks, pulp and paper digesters
