  • Forged Monel  400 wn flange
  • Forged Monel  400 wn flange

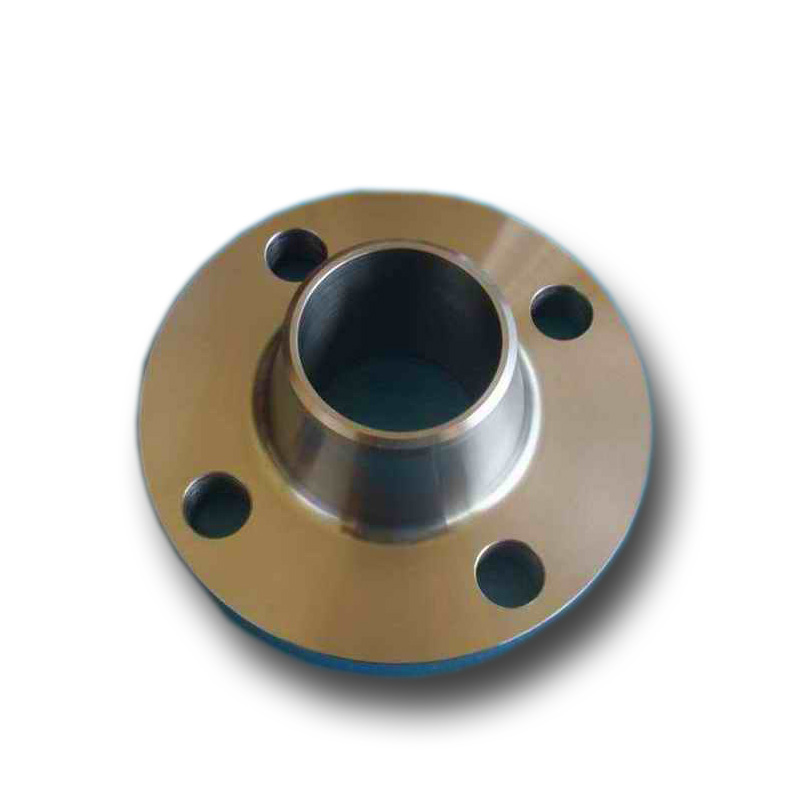

Forged Monel 400 wn Flange

  • Product name: wn flange
  • Material : Monel 400
  • Size: 1/2"-48"
  • Standard: B16.5, B16.47

PRODUCT DESCRIPTION

ASTM B564 MONEL SLIP ON FLANGES, MONEL 400 WELD NECK FLANGES EXPORTER, MONEL 400 FLANGES, MONEL 400 WN FLANGES SUPPLIER, Monel 400 wn rf flange, UNS N04400 Flange, Nickel Alloy Flanges Supplier


HT PIPE is a manufacturer, trader, stockist, supplier and exporter of ASTM B564 Monel 400 Flanges that are made from pure Nickel, alloyed with Copper and other metals, giving it a durable nature and the prowess to function under a host of corrosive services. We offer UNS N04400 Monel 400 Flanges that have a good economic value owing to its tendency of remaining neutral to corrosive fluids, making them reusable.

ASTM B564 MONEL 400 WN FLANGES SPECIFICATION

Specifications : ASTM B564 / ASTM SB 564
Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, Custom Drawings
Size : 1/8″ – 48″
Pressure Ratings :150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Standards : ASTM, ASME Flanges, ANSI Flanges, DIN Flanges, EN Flanges, BS Flanges etc.

MONEL ALLOY 400 FLANGES EQUIVALENT GRADE

STANDARD  WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Monel 400 2.4360 N04400 NW 4400 NA 13 МНЖМц 28-2,5-1,5 NU-30M NiCu30Fe

 MONEL 400 FLANGES CHEMICAL COMPOSITION

Grade  C Mn Si Cu S Ti Ni Al Fe
Monel 400 0.3 max 2.0 max 0.5 max 28.0 – 34.0 0.02 max - 63.0 min 0.50 max 1.0 – 2.5

ALLOY 400 FLANGES MECHANICAL PROPERTIES

Element  Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Monel 400 8.8 g/cm3 1350 °C (2460 °F) Psi – 80000 , MPa – 550 Psi – 35000 , MPa – 240 40 %

3.PRODUCT SHOWING

Monel  400 wn flange
