  • pipe nipple
  • TBE pipe nipple
  • pipe nipple

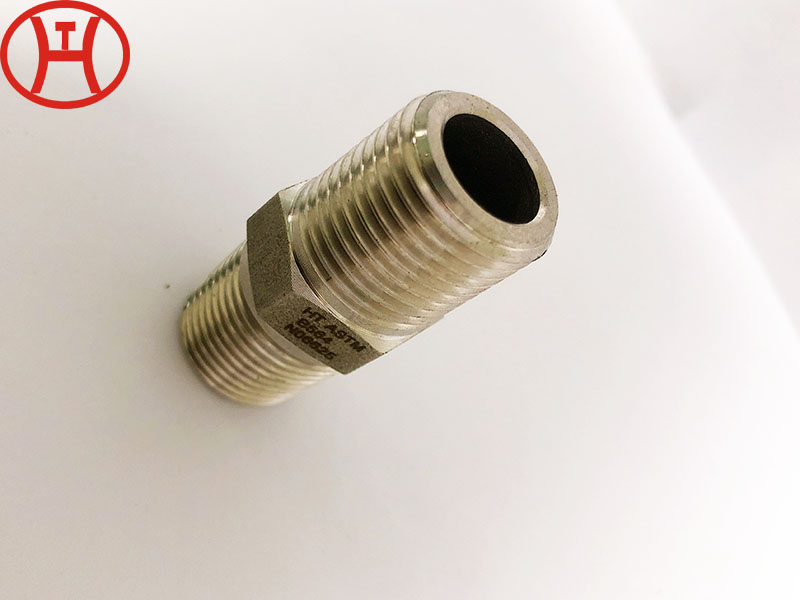

  • hex nipple

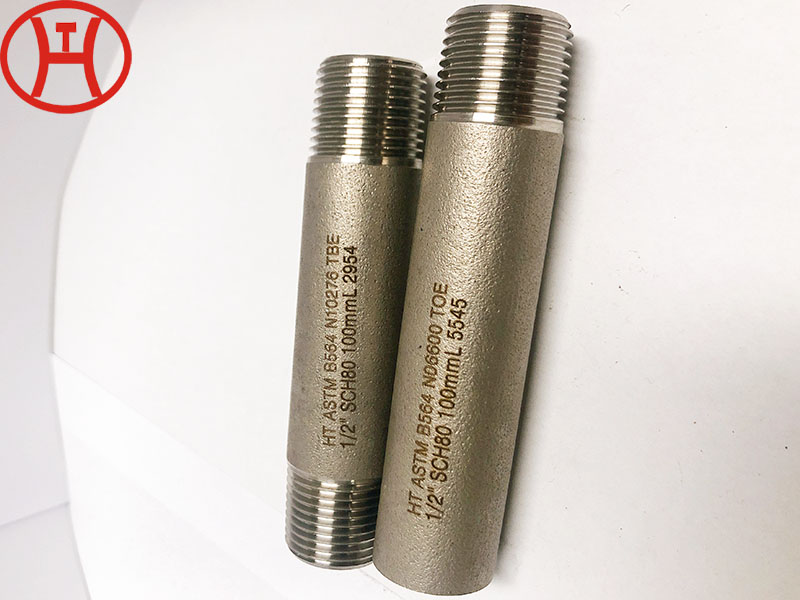

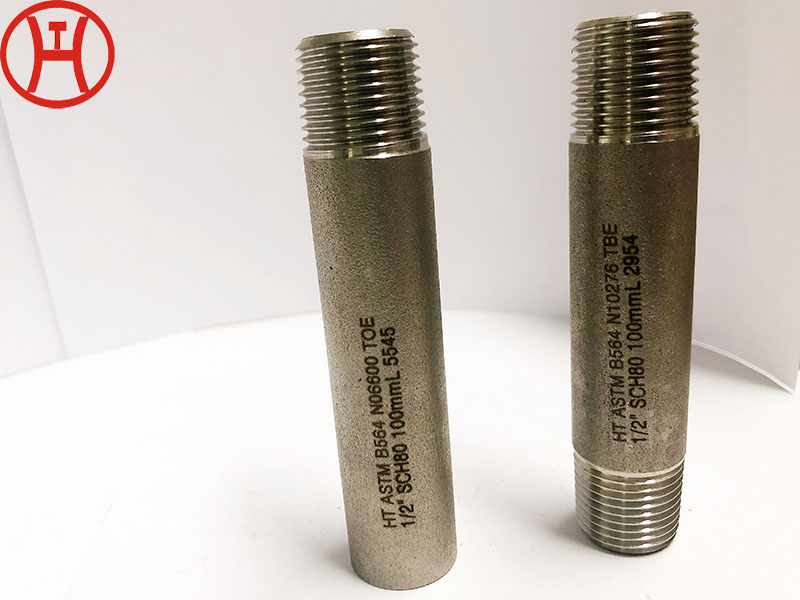

Pipe Nipple

  • Type: TBE, PBE, hex nipple, Threaded,
  • Size: 1/8″~6″
  • Class: 40/STD/80/XS/160/XXS, 3000LB, 6000LB

Pipe Nipple Description

Pipe Nipple Manufacturing Standards:
Standard Types Class Rating/Schedule Ends Size
BS3799 Hex Nipple  3000LB/6000LB Threaded 1/8''~2''x1/2''
Pipe Nipple 40/STD/80/XS /160/XXS See Below Note1 1/8''~6''
Note1 PBE:Plain Both Ends  BBE Bevel Both Ends  TBE: Threaded Both Ends  PSE:Plain Small End BSE:Bevel Small End TSE:Threaded Small End  PLE:Plain Large End  BLE:Bevel Large End  TLE:Thread Large End
Note2 For the swage nipples,pipe nipples,the material can be referred to the pipe standard.
Note3 NPT(National Pipe Thread) FPT(Female Pipe Thread) MPT(Male Pipe Thread) BSPT(British Standard Pipe Thread)
Pipe Nipple Material Grades:
Nickel Alloy ASTM / ASME B/SB 564 UNS N02200 (NICKEL 200), UNS N04400 (MONEL 400), UNS N08825 INCOLOY (825), UNS N06600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS N06625 (INCONEL 625), UNS N010276 ( HASTELLOY C 276), ASTM / ASME B/SB 160 UNS N02201 (NICKEL 201) ASTM / ASME B/SB 472 UNS N08020 ( ALLOY20 / 20CB3)
Copper Alloy ASTM / ASME B/SB 151 UNS NO. 70600, 71500, C 70600 ( CU -NI- 90/10), C 71500 ( CU -NI- 70/30)
Stainless Steel ASTM / ASME A/SA 182 F 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H.
Duplex and Super Duplex ASTM / ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61.
Carbon Steel ASTM / ASME A/SA 105(N)
Low Temp Carbon Steel ASTM / ASME A/SA 350 LF 2.
High Yield Carbon Steel ASTM / ASME A/SA694 F52 F56 F60, F65, F70
Alloy Steel ASTM / ASME A182 GR F5, F9, F11, F12, F22, F91.
Titanium ASME ASTM SB/B381 Grade 2, Grade 5, Grade 7
