  • duplex steel 2205 plate sheet

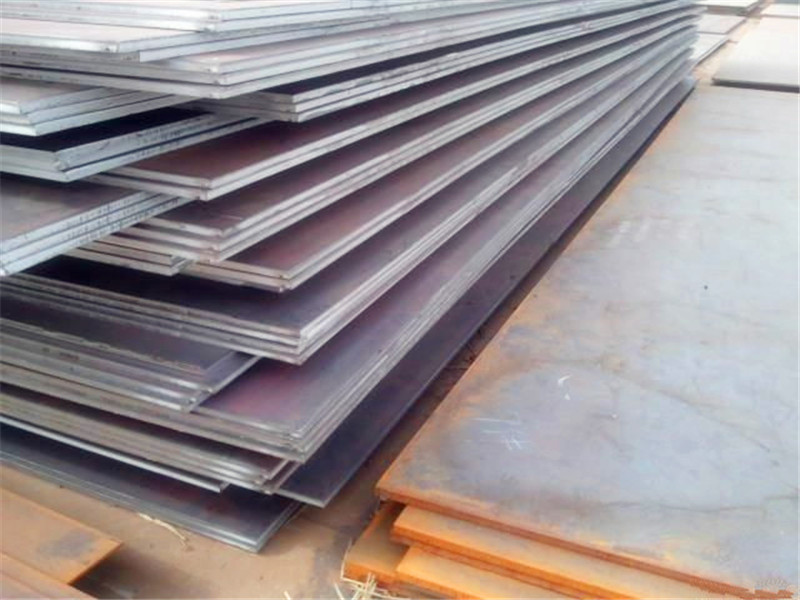

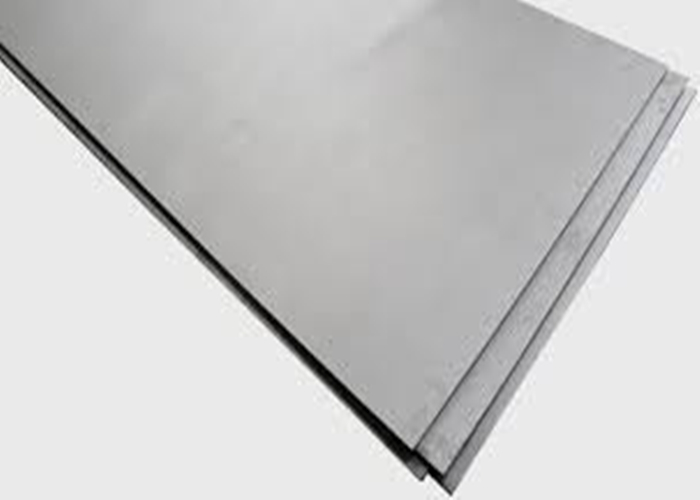

Duplex steel 2205 plate sheet

  • Material Grade: UNS S32205
  • Width: 0~2500mm or as per your requirements
  • Length: 0~12m or as per your requirements
  • Thickness: 0.3~1200mm or as per your requirements



Duplex 2205 is a nitrogen enhanced duplex stainless steel that was developed to combat common corrosion problems encountered with the 300 series stainless steels. “Duplex” describes a family of stainless steels that are neither fully austenitic, like 304 stainless, nor purely ferritic, like 430 stainless. The structure of 2205 duplex stainless steelconsists of austenite pools surrounded by a continuous ferrite phase. In the annealed condition, 2205 contains approximately 40-50% ferrite. Often referred to as the work horse grade, 2205 is the most widely used grade in the duplex family of stainless steels.

The advantage of a duplex structure is that it combines the favorable qualities of a ferritic alloy (stress corrosion cracking resistance and high strength) with those of an austenitic alloy (ease of fabrication and corrosion resistance).

Usage of 2205 Duplex stainless steel should be limited to temperatures below 600° F. Extended elevated temperature exposure can embrittle 2205 stainless.

Corrosion Resistance

2205 duplex stainless steelis a cost effective solution for many applications where the 300 series stainless steels are susceptible to chloride stress corrosion cracking. Stress corrosion cracking occurs when stainless steels are subjected to tensile stress, while in contact with solutions containing chlorides. Increasing temperatures also increase the susceptibility of stainless steels to stress corrosion cracking.

The combination of chromium, molybdenum and nitrogen convey the good resistance of 2205to chloride pitting and crevice corrosion. This resistance is extremely important for services such as marine environments, brackish water, bleaching operations, closed loop water systems and some food processing applications. The high chromium, molybdenum and nitrogen contents of 2205 provide corrosion resistance superior to common stainless steels, such as, 316L and 317L in most environments and HT company has been actively involved in ensuring the best quality of the same to our clients.

This exotic alloy is used in oil and gas exploration, chemical processing industries also make use of this alloy. Most of the processing equipment utilizes Duplex 2205. It is also used by storage and transportation units of industries. Pulp and paper digesters, liquor tanks and paper machines also use Duplex 2205. It is highly suitable for usage in marine environments

What are the characteristics of Duplex 2205?

High resistance to chloride stress corrosion cracking
Resistance to chloride pitting and crevice corrosion
Good general corrosion resistance

Chemical Properties of 2205 duplex stainless
  Element Percent by Weight
Cr Chromium 22.0 - 23.0%
Ni Nickel 4.5 - 6.5%
Mn Manganese 2.0% max
Si Silicon 1.0% max
P Phosphorous 0.03% max
S Sulfur 0.02% max
C Carbon 0.03% max
N Nitrogen 0.1 - 0.2%
Mo Molybdenum 3.0 - 3.5%
Fe Iron Balance

Physical properties of 2205 duplex steel

Physical property Value
Density: 0.278 lb/in3
Melting Range: 2525-2630°F
Specific Heat Capacity at 212°F 0.119 Btu/lb/°F
Thermal Conductivity at 212°F 8.4 Btu/hr-ft-°F
Poisson's Ratio 0.3
Elastic Modulus at 72°F 29 x 10 psi


Mechanical properties of 2205 duplex

Mechanical property Value


0.2% Yield Strength, ksi


65 min


Tensile Strength, ksi


90 min


Elongation, %


25 min

Hardness [HRC] 293 max

Good sulfide stress corrosion resistance
High Strength
Good weldability and workability
