  • hastelloy C-22 plate sheet

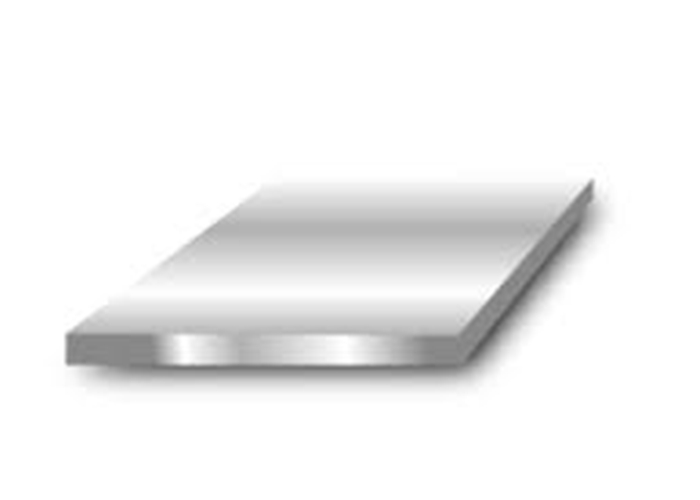

Hastelloy C-22 plate sheet

  • Material Grade: Hastelloy C-22
  • Width: 0~2500mm or as per your requirements
  • Length: 0~12m or as per your requirements
  • Thickness: 0.3~1200mm or as per your requirements


Hastelloy C22 Sheet Hot Rolled Hastelloy X Plate 0.1mm - 12mm Thickness Custom Size

1. Hastelloy C22 Sheet Plates
HT PIPE is a prominent suppliers and exporter of Hastelloy C22 Sheet Plate. We have exported ASTM B575 UNS N06022 to more than 70 countries worldwide.
Other Names: ASTM B575 UNS N06022, Hastelloy Sheet, Hastelloy Plate, Hastelloy Sheet Plate, Hastelloy Coil, Hastelloy Foil, Hastelloy Strips, Hastelloy shim Sheet, Hastelloy C22 Plate, Hastelloy Chequered Plate
Material: Hastelloy C22

Rating: 4.3/5 based on 75 customer reviews


2. Hastelloy C22 Sheet Plates use

Manufacture structural sections for railcars and ships, as well as armour for military vehicles. In transportation, the metal sheets are used to manufacture panels for automobile bodies and tractor trailers. In building and construction, it is formed into products including siding, gutters, roofing, awnings and carports. Hastelloy Sheet Plates are further categorised in following forms:

Hastelloy Sheet: If a piece of metal has been rolled out to a thickness greater than that of a foil, but is still less than 6mm it is called sheet.

Hastelloy Shim Sheet: A shim is thin and often tapered or wedged piece of metal. Shim Sheet is used to fill small gaps or spaces between objects. Sheet Shims are typically used in order to support, adjust for better fit, or provide a level surface.

Hastelloy Rolled Sheet Coil: Sheet Coils are flat products wound into rolls and having a rectangular cross-section, the width of which is much larger than the thickness. Hot Rolled Sheet Coil is produced from semifinished products (slabs or billets), which are reduced to certain thicknesses by rolling and annealing and wound into a roll. Cold Rolled Sheet Coil is produced by removing rust from a hot-rolled sheet by "pickling" it in a weak acid solution, then washing, brushing, drying, oiling and unrolling the sheet and finally performing cold-rolling by passing the sheet through a reducing mill under pressure and winding it into a roll. Cold-rolled steel Coil is a more highly finished product and has a smoother surface, greater dimensional accuracy (thickness, width, length) and greater strength.

Hastelloy Rolled Sheet Strips: Sheet Strip is a flat product which, immediately after the final rolling pass or after pickling or continuous annealing is wound into laps so as to form a coil. Strip of Sheet as rolled has slightly convex edges, but it may also be supplied with sheared edges or slit from a wider strip. Wide Strip is a strip of a width 600 mm or over, Whereas, Narrow Strip is a strip of a width less than 600 mm.

Hastelloy Plate: Once the metal is more than 6mm thick it is known as plate metal. This type of material is used in circumstances whereby strength and durability are of the utmost importance.


Hastelloy Diamond Plate: Diamond plate, also known as a chequered plate, thread plate and floor plate, is a type of metal designed with a regular pattern of raised diamonds or lines on one side, with the reverse side being featureless. Diamond plate is usually stainless steel or alloy.


3. Hastelloy C22 Sheet Plates Specification:

Material Size Thickness Specification Make
Hastelloy C22 Plate / Sheet / Flat / Coil 1250 mm x 2500 mm 0.1mm to 12 mm Thk IS, BS, ASTM, UNS  European and Japanese origin
1000 mm x 2000 mm
1220 mm x 2440 mm (4' x 8')
1500 mm x 3000 mm
2000 mm x 2000 mm
2000 mm x 4000 mm


Chemical Properties

  C W Mn Fe S Si Cr Ni Co Mo P V
MIN - 2.500 - 2.000 - - 20.000 Bal - 12.500 - -
MAX 0.015 3.500 0.500 6.000 0.020 0.080 22.500   2.500 14.500 0.020 0.350


Mechanical Properties

  Yield Strength
0.2% Proof
Tensile strength
(% in 50mm)
MIN 310 690 45.00
MAX       100


Physical Properties

Density lb/in³ 0.311
g/cm³ 8.61
Specific Heat Btu/lb•°F 0.091
J/kg•°C 381
Melting Range °F 2464-2529
°C 1351-1387
Permeability 200 oersted (15.9 kA/m) ≤1.001
Young's Modulus 103 ksi 30.3
GPa 209
Electrical Resistivity ohm•circ mil/ft 730.7
microhm•m 1.215
Coefficient of Expansion 70-200°F,106 in/in•°F 6.9
21-193°C, μm/m•°C 12.42



China, USA, Canada, Saudi Arabia, Singapore, Malaysia, Indonesia, Thailand, Mexico, Belgium, Qatar, UAE, Taiwan, Iran, Austria, Bangladesh, South Korea, Chile, Japan, Turkey, South Africa, Egypt, Vietnam, Kuwait, UK, Oman, Israel, Myanmar (Burma), Zambia, Peru, Spain, France, Nigeria, Serbia, Venezuela, Netherlands, Brazil, Colombia, Ghana, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Iraq, Jordan, Kazakhstan, Sri Lanka, Norway, Philippines, Russia, Hungary.
