Monel 400 UNS N04400 W.Nr2.4360

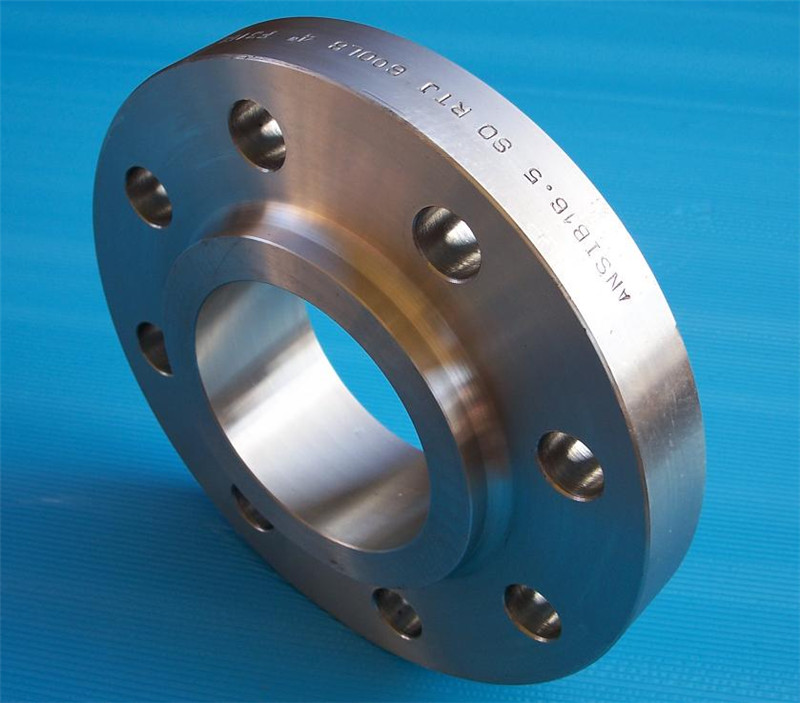

ASTM B564 UNS N04400 Flange is steel flangemade from Monel 400, a highly corrosion-resistant alloy, it can withstand extreme temperatures and corrosive environments.
The UNS N04400 steel flanges themselves are available in a variety of sizes and styles to meet the needs of different applications. They can be found in different pressure classes, including 150#, 300#, and 600#, with raised face or flat face options. The flanges can also come in different shapes, such as slip-on, blind, socket weld, and threaded etc.
Chemical Composition
|
C
|
Mn
|
S
|
Si
|
Ni
|
Cu
|
Fe
|
|
0.30 max
|
2.00 max
|
0.24 max
|
0.50 max
|
63.0 min
|
28.0-34.0
|
2.50 max
|
Mechanical Properties
Typical room temperature tensile properties of Annealed Material
|
Product Form
|
Condition
|
Tensile(Ksi)
|
.2% Yield (Ksi)
|
Elongation(%)
|
Hardness(HRB)
|
|
Rod&Bar
|
Annealed
|
75-90
|
25-50
|
60-35
|
60-80
|
|
Rod&Bar
|
Cold-Drawn Stress Relieved
|
84-120
|
55-100
|
40-22
|
85-20HRC
|
|
Plate
|
Annealed
|
70-85
|
28-50
|
50-35
|
60-76
|
|
Sheet
|
Annealed
|
70-85
|
30-45
|
45-35
|
65-80
|
|
Tube&Pipe Seamless
|
Annealed
|
70-85
|
25-45
|
50-35
|
75 max*
|
ASTM B564 UNS N04400 Monel 400 Flanges are manufactured to the highest standards of quality and precision. They are designed to fit standard ANSI B16.5 flange dimensions and are available in various sizes and configurations. The flanges are made using Monel 400, which gives them exceptional resistance to corrosion and high-temperature environments.
ASTM Specifications
|
Pipe Smls
|
Pipe Welded
|
Tube Smls
|
Sheet/Plate
|
Bar
|
Forging
|
Fitting
|
|
B165
|
B725
|
B163
|
B127
|
B164
|
B564
|
B366
|
Monel 400 is a nickel-copper alloy with high strength and excellent corrosion resistance. Monel 400 flanges are used in a variety of applications, including marine engineering, seawater piping systems, petrochemical processing, and chemical processing. Monel 400 is also known for its resistance to stress corrosion cracking, which makes it suitable for high-stress applications.
