UNS N08020, also known as Alloy 20 is one of the “super” stainless steels developed for maximum resistance to acid attack, because of this, there are various uses for it in both the stainless and nickel industries.

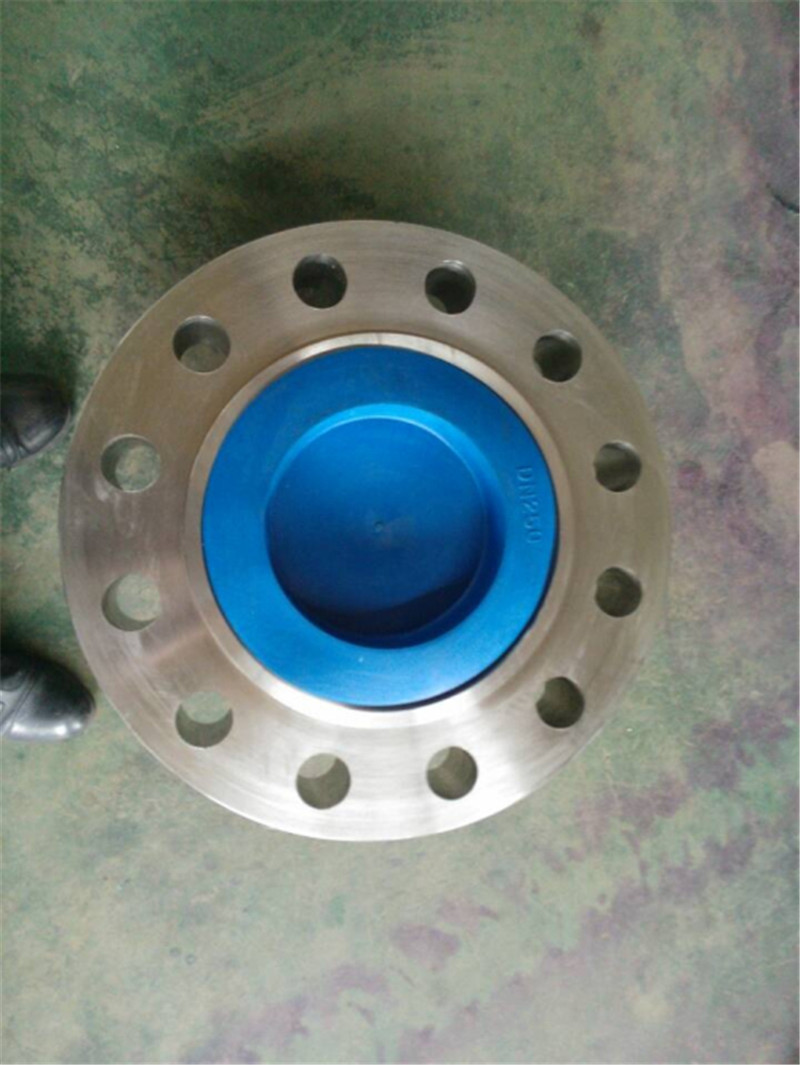

HT PIPE provides all kinds of alloy 20 flanges: alloy 20 WN Flange, UNS N08020 SW Flange, UNS N08020 threaded Flange, alloy 20 blind Flange, alloy 20 SO Flange, ect.
Standard:ASME B16.5, ASME B16.47, DIN, EN, BS, JIS
Class: 150#,300#,400#,600#,900#,1500#,2500#
Alloy 20 seems to fall in-between both the stainless and nickel categories, as it does contain characteristics of both; however, the unified numbering system (UNS) does ultimately recognize it as a nickel based alloy, hence the UNS N08020 number.
Alloy 20 is an austenitic nickel-iron-chromium based alloy with additions of copper and molybdenum. Its nickel content aids in its chloride ion stress and corrosion resistance. The addition of copper and molybdenum provides resistance to hostile environments, pitting and crevice corrosion. Chromium adds to its resistance of oxidizing environments, such as nitric acid, and columbium (or niobium) reduces the effects of carbide precipitation. Most welding methods can be used when working with Alloy 20, except for oxyacetylene welding. It can also be hot formed using the same forces required to hot work austenitic stainless steels. In terms of machineability, outstanding finishes are possible using the same set-up and process speeds used for austenitic stainless steels, such as Stainless Steels 316 or 317.
UNS N08020 Alloy 20 Flange Design features
Exceptional stress-corrosion resistance in boiling 20% to 40% sulfuric acid
Sulfuric acid general corrosion resistance
Ideal fabricability and mechanical characteristics
Welding produces minimal carbide precipitation
UNS N08020 Alloy 20 Flange Applications
Chemical and allied industries
Pharmaceutical processing
Food and dye
Sulfur dioxide (SO2) scrubbers
Pickling racks
Tanks
Alloy 20 Chemical Composition %
|
C
|
Cb
|
Cr
|
Cu
|
Mn
|
Mo
|
Ni
|
P
|
S
|
Si
|
Ta
|
|
MAX
|
8 Times
|
|
|
MAX
|
|
|
MAX
|
MAX
|
MAX
|
8 Times
|
|
0.07
|
Carbon-1.00
|
19.0-21.0
|
3.0-4.0
|
2.0
|
32.0-38.0
|
32.0-38.0
|
0.045
|
0.035
|
1.0
|
Carbon-1.00
|
