  • ASTM A276 ASME SA276 UNS S32100 stainless steel bars and rods

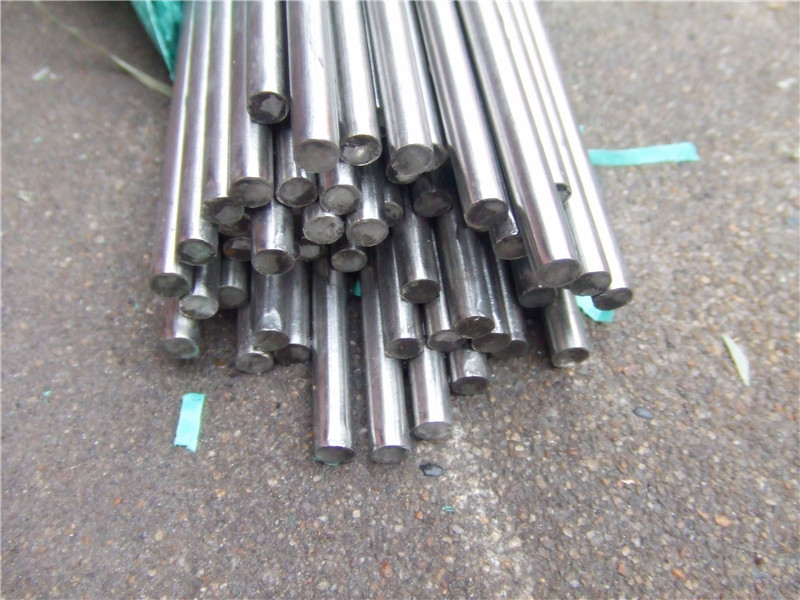

ASTM A276 ASME SA276 UNS S32100 stainless steel bars and rods

  • Austenitic:UNS S32100
  • Size:5~500mm
  • Length:As per clients' requirements.
  • Surface:Bright or Black

PRODUCT DESCRIPTION


Stainless Steel 321 Round Bars Equivalent Grades

STANDARD

WERKSTOFF NR.

UNS

SS 321

1.4541

S32100

ASTM A276, A479 321 Stainless Steel Round Bar Specification

Dimensions : EN, DIN, JIS, ASTM, BS, ASME, AISI

Standard : ASTM A276, ASTM A479

Material Grade : Stainless Steel 321 (UNS S32100)

Stainless Steel 321 Round Bars : Outside Diameter in the range of 4mm to 500mm

Stainless Steel 321 Bright Bars : Outside Diameter in the range of 4mm to 100mm

Stainless Steel 321 Hex Bars : 18mm – 57mm (11/16″ to 2-3/4″)

Stainless Steel 321 Square Bars : 18mm – 47mm (11/16″ to 1-3/4″)

Stainless Steel 321 Flats : 1/2” to 10” in thickness range of 2mm to 150mm, Custom Size Stainless Steel Flats available

Length : 1 to 6 Meters, Custom Cut Lengths

Form : Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc.

Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish

SS UNS S32100 Round Bar Chemical Composition

321

Max

Min

Ni

12.00

9.00

C

0.08

-

Mn

2.00

-

P

0.045

-

S

0.030

-

Si

1.00

-

Cr

19.0

17.0

Mo

3 – 4

-

N

0.10 max

-

TI

0.70

5(C+N)

321 Stainless Steel Round Bar Mechanical & Physical Properties



Element

SS 321

Density

8.0 g/cm3

Melting Point

1454 °C (2650 °F)

Tensile Strength

Psi – 75000 , MPa – 515

Yield Strength (0.2%Offset)

Psi – 30000 , MPa – 205

Elongation

35 %

Hardness (Brinell)

217
