ASTM A213 TP347H tube is a high-temperature stabilized stainless steel seamless tube suitable for use in boilers and heat exchangers.
Alloy 347H (UNS S3409) is a high-carbon material (C: 0.04% - 0.10%), that retains excellent strength during service at temperatures up to 1000°F (537°C).
347H steel tube also contains niobium, thereby imparting excellent resistance to intergranular corrosion, oxidation, and creep.
We at HT PIPE are a global supplier of 347H stainless steel material. We not only provide pipes, plates, round bars, but also pipe fittings, flanges, etc. We offer competitive price and customized services; contact us today to receive a free quotation!
ASTM A213 TP347H Stainless Steel Pipes and Tubes Specifications
|
Grades
|
SS 347H / UNS S34709 / 1.4961/ 18Cr-10Ni-Cb / EN X6CrNiNb18-12
|
|
Specification
|
ASTM A213/ ASME SA 213, ASTM A312/ ASME SA 312
|
|
Seamless Pipes Size
|
Outer Diameter: 4 to 219mm
|
|
Wall Thickness: 0.5 to 20mm
|
|
Wall Thickness
|
Schedule 5, Schedule 40, Schedule10, Schedule 80, Schedule 160, Schedule 80S, Schedule XXS, Schedule XS
|
|
techniques
|
Seamless
|
|
Form
|
Round, Square, Rectangular
|
|
Length
|
Double Random & Required Length End, Single Random, Plain End, Treaded, Beveled End
|
|
Condition
|
Hot Finished, Annealed, Pickled, and Passivated, Bright Annealed, Polished, Cold Drawn
|
|
Certificate
|
Inspection certificate per 3.1 EN 10204-2004
No. AMM-03-TU-008 NEFTEKHIMPROJECT
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
|
ASME SA 213 TP347H Tube Chemical Composition
|
Grade
|
C
|
Nb
|
Ni
|
P
|
S
|
Cr
|
Mn
|
Si
|
Fe
|
|
SS 347H
|
0.04 – 0.10
|
8xC – 1.10
|
9.0 -13.0
|
0.045 max
|
0.030 max
|
17.00 - 19.00
|
2.0 max
|
1.0 max
|
63.72 min
|
The TP347H seamless tubes supplied by HT PIPE are strictly controlled to have a grain size of No. 7 or coarser (ASTM E112), and each batch undergoes 100% PMI testing to ensure the correct ratio of niobium (Nb) to carbon (C).
SS 347H Mechanical Properties
|
Tensile strength (σ₀)
|
≥ 515 MPa
|
|
Yield strength (σ₀.₂)
|
≥ 205 MPa
|
|
Elongation over 50 mm gauge length
|
≥ 35%
|
|
Hardness
|
≤ 90 HRB
|
|
Grain size
|
ASTM E112 No. 7
|
SS347h Material Heat Treatment
Hot Finished: Solution treatment ≥ 1050°C, rapid cooling
Cold Finished: Solution treatment ≥ 1100°C, rapid cooling
AISI 347H Tube Applications:
Boiler tubes and furnace shells
Oil and gas pipelines
Superheaters
High-pressure steam piping
Heat exchanger tubes
Aircraft exhaust systems
Power plants, refineries, petrochemical facilities, etc.
Alloy 347h Pipe Testing HT can Provide
100% Visual Inspection

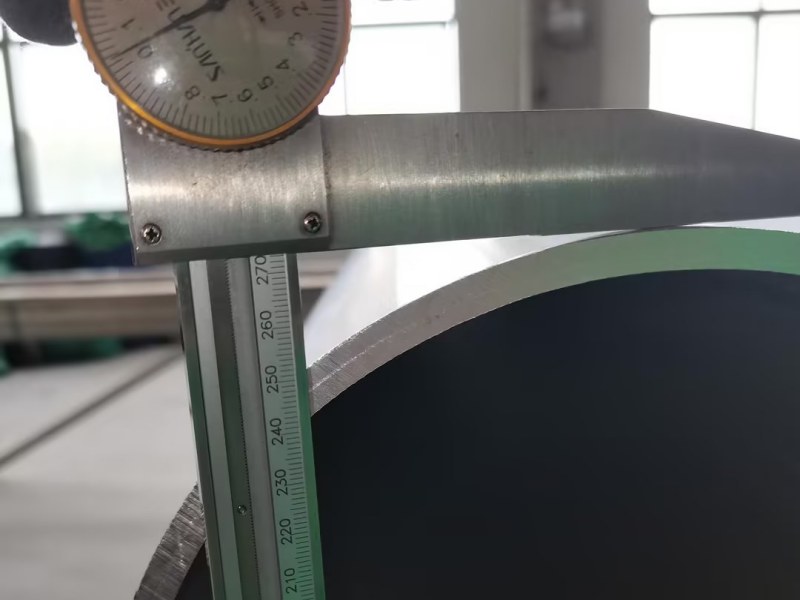

100% Dimensional Inspection
100% PMI Chemical Analysis
Flaring Test, Flattening Test: Performed to ASTM A1016M
100% Ultrasonic Testing (UT): Standard ASTM E999-14 / ASTM E213-13
Eddy Current Testing: Standard ASTM A999 / ASTM A426
Intergranular Corrosion Test (IGC): Performed to ASTM A262-13
Buy TP347H Seamless Tube
|
Item No.
|
Especificaciones (diámetro exterior × espesor de pared)
|
Length (mm)
|
|
1
|
88.9 × 13.2 mm
|
4050
|
|
2
|
88.9 × 13.2 mm
|
3430
|
|
3
|
88.9 × 13.2 mm
|
7340
|
|
4
|
88.9 × 13.2 mm
|
6000
|
FAQ:
What is TP 347 material?
TP347H is a niobium (Nb)-stabilized stainless steel tube that offers resistance to intergranular corrosion within the temperature range of 427–816°C (800–1500°F). It is widely used in industries such as oil refining, boiler manufacturing, petrochemicals, aviation, and paper production.
What is the difference between 347 and 347H?
Grade 347H stainless steel is a high-carbon version of 347.
347: C ≤ 0.08%; suitable for general high-temperature applications.
347H: C = 0.04–0.10%; suitable for high-temperature service conditions exceeding 1000°F.
What is the difference between 347H and 316H?
347H: Contains the stabilizing element niobium (Nb); its primary advantages lie in its high-temperature creep strength and resistance to intergranular corrosion.
316H: Contains the element molybdenum (Mo); it offers superior resistance to marine environments, chlorides, pitting corrosion, and crevice corrosion.
What is the maximum temperature for 347H?
1650°F–1700°F
Continuous service: Up to 899°C (1650°F)
Intermittent service: Up to 925°C (1700°F)
What temperature is annealing 347H?
1850 to 2000°F
Solution Annealing: 1010–1193°C (1850–2000°F), followed by rapid water quenching to restore corrosion resistance.
