  • stainless-steel-317L-plate-sheet

stainless-steel-317L-plate-sheet

  • Material Grade:stainless steel 317L
  • Width:0~2500mm or as per your requirements
  • Length:0~12m or as per your requirements
  • Thickness:0.3~1200mm or as per your requirements

PRODUCT DESCRIPTION

ASTM A240 UNS S31726 SUS317L plate sheet strip with JAPAN NIPPON origin

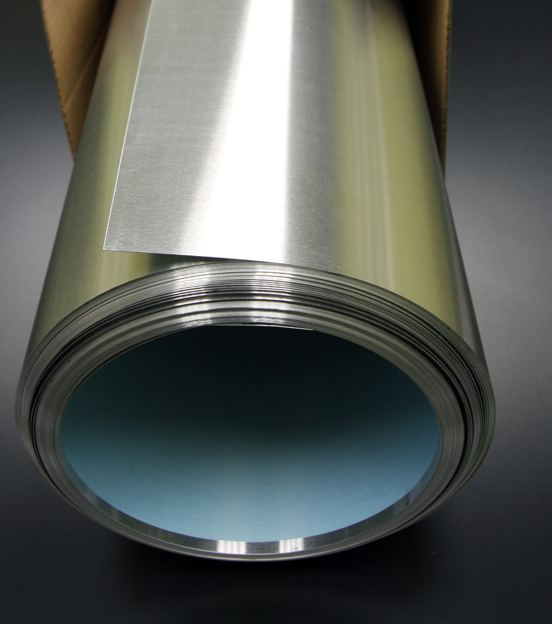

1. Stainless Steel 317/317L Sheets Plates Coils



Stainless Steel 317 Plates

SS 317L Sheets

SS 317/317L Coils

Stainless Steel Wires

Stainless Steel UNS S31700 Perforated Sheet, Stainless Steel 317L Plates Distributor in Maharashtra, SS Din 1.4438 Chequered Plate

Manufacturer, SS 317 Coils Exporter & Suppliers.

Well-known for manufacturing, supplying and exporting a widespread collection of world-class SS 317 Sheets and SS 317L Sheets, Steelage Alloys LLP cater a huge clientele across global and domestic markets. Stainless Steel 317 Plates (UNS S31700) and Stainless Steel 317L Plates(UNS S31703)is a molybdenum-bearing austenitic stainless steel with greatly increased resistance to chemical attack as compared to the conventional chromium-nickel austenitic stainless steels such as Alloy 304.In addition, SS 317 Plates and SS 317L Plates offers higher creep, stress-to-rupture, and tensile strength at elevated temperatures than conventional stainless steels. Offered by us, these Stainless Steel317Sheets (WNR 1.4449) and Stainless Steel 317L Sheets (WNR 1.4438) can be custom designed in adherence to the set industry regulations and standards.



2. Stainless Steel 317/317L Sheets Plates Coils Specifications



Specifications ASTM A240 / ASME SA240
Dimensions ASTM, ASME and API
Size 1000 mm x 2000mm, 1220mm x 2440mm, 4' x 8', 1250mm x 2500mm, 1500mm x 3000mm to 6000mm, 2000mm x 4000mm to 6000mm
Range 5mm To 150mm
Condition Cold Drawn & Polished Cold Drawn, Centreless Ground & Polished
Specialize Shim Sheet, Perforated Sheet, B. Q. Profile.
Hardness Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Thickness 4.0mm - 100mm
Form Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc.
Finish Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange)
Finish Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)



Grade Specification:

STANDARD WERKSTOFF NR. UNS JIS AFNOR BS GOST EN
SS 317 1.4449 S31700 - - - - -
SS 317L 1.4438 S31703 - - - - -





Chemical Composition :
Grade C Mn Si P S Cr Mo Ni N
317 0.08 max 2 max 1 max 0.040 max 0.03 max 18 – 20 3 – 4 11 – 14 -
317L 0.035 max 2 max 1 max 0.040 max 0.03 max 18 – 20 3 – 4 11 – 15 -



Physical properties :

Grade Specific Heat (0-100°C) Thermal Conductivity Thermal Expansion Modulus Elasticity Electrical Resistivity Density
J.kg-1.°K-1 W.m -1.°K-1 mm/m/°C GPa μohm/cm g/cm3
317 500 14.6 16.5 193 7.4 8.0
317L 0.46 14.6 16.5 200 31.1 7.92















Mechanical properties :

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
317 / 317L 515 205 40% 217



3. Other Types Of Stainless Steel 317/317L Sheets Plates Coils



Stainless Steel 317/317L Sheets SS 317/317L Plates
SS DIN 1.4449 Shim Sheets ASTM A240 SS Perforated Sheet
AISI 317L Chequered Plate Stainless Steel 317L Perforated Coils
SS 317 Plain Sheets in Gujarat Stainless Steel 317 Profile
SUS 317L Diamond Plates Steel UNS S31703 Hot rolled plate in Tamil nadu
ASTM A240 317 SS Coils Dealer in Maharashtra Stainless Steel 317 Cold rolled sheet
SS 317L Strips DIN 1.4438 Circles
SS UNS S31700 Rolls Stainless Steel 317 Blank
AISI 317L Flats ASTM A240 SS 317L stainless steel Ring
Stainless Steel 317 Foils SS 317/317L Sheet Plates Coils



4. Stainless Steel 317 / 317L Sheets, Plates, Coils, Circle, Rings Other Available Products



Stainless Steel 317 Sheets Stainless Steel 317L Plates

Stainless Steel 317 Shim Sheets Stainless Steel 317L Cold rolled sheet

Stainless UNS S31700 Plates Stainless Steel 317L Hot rolled plate

SS 317 Perforated Sheet Suppliers SS 317L Rolls

SS 317 Chequered Plate Dealer SS 317L Flats Exporter

SS 317 Plain Sheets Stockholder Steel 317 Blank Distributors

Stainless UNS S31703 Circles SS 317 Circles Manufacturer

Stainless Steel DIN 1.4449 Rings SS DIN 1.4438 Sheets & Plates

Stainless Steel 317 Strips Stainless 317 Perforated Coils

SS 317 Foils SS 317L Profile Stockist

ASTM A240 Stainless Steel 317 Coils ASTM A240 Stainless Steel 317L Sheets

SS 317 Plates SS 317l Sheets
