1. Order Information
| DESCRIPTION |

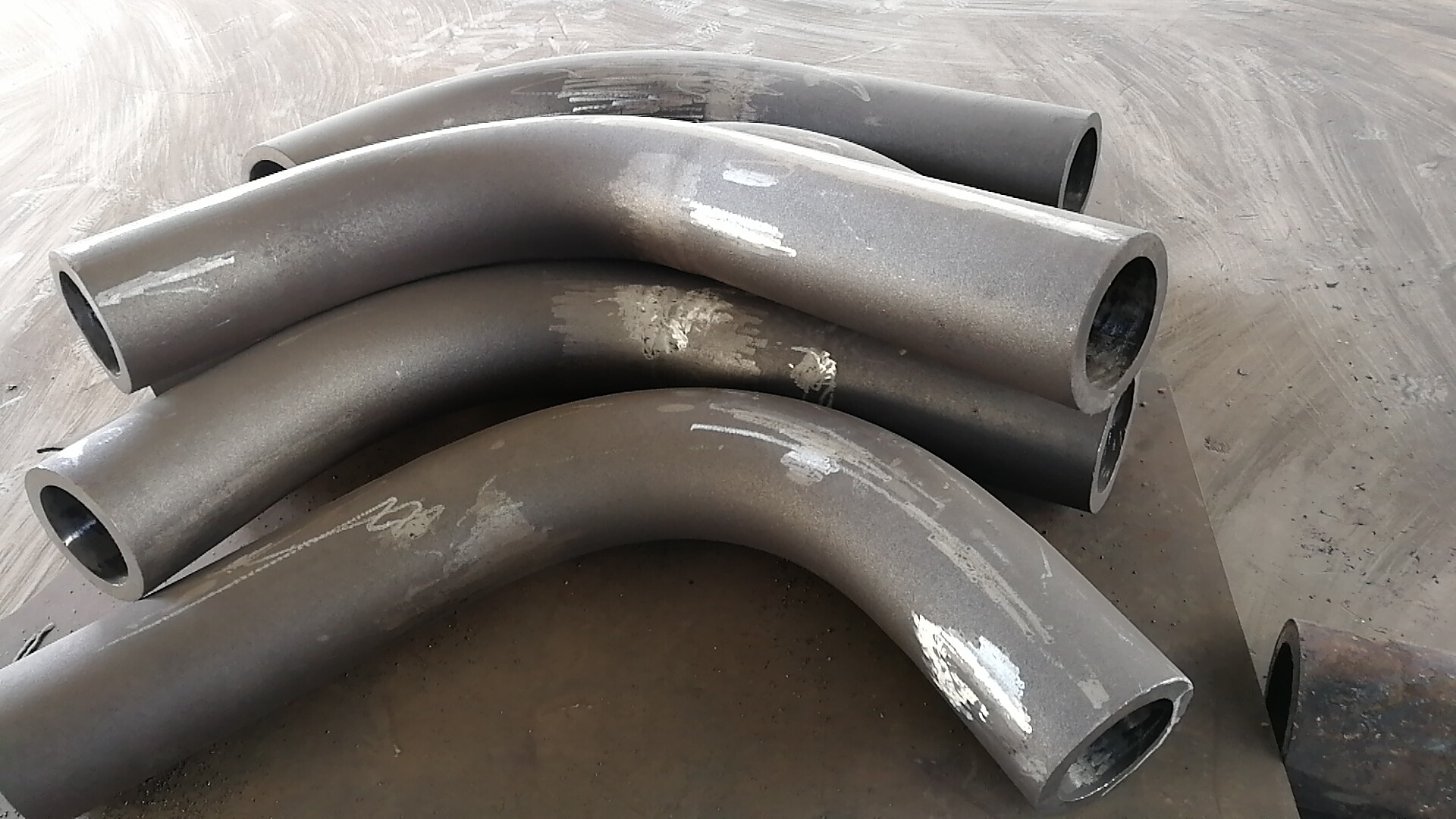

A234 WP22 ELBOW 219.1x22.2 L1=765mm L2=1130mm L3=630mm L4=265mm R=500mm |
| QTY(Pcs) |
10 |
| Export Date |
2019/05/20 |
| Export Country |
Czech Republic |
2. Standard Specification For Alloy Steel ASTM A234 WP22 Pipe Fittings
Specifications : ASTM A234 / ASME SA234
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Type : Seamless / Welded / Fabricated
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
3. ASTM A234 WP22 Alloy Steel Pipe Fittings
Seamless/ Welded 100% Radiography Tested
| Products |
Size |
| ASTM A234 WP22 Alloy Steel Elbow – Long Radius |
ASTM A234 WP22 Alloy Steel Stub Ends |
Sizes 1/2″ – 48″ |
| ASTM A234 WP22 Alloy Steel Elbow – Short Radius |
ASTM A234 WP22 Alloy Steel Cross |
| ASTM A234 WP22 Alloy Steel Reducing Elbow |
ASTM A234 WP22 Alloy Steel Reducing Cross |
| ASTM A234 WP22 Alloy Steel 45° Elbow |
ASTM A234 WP22 Alloy Steel Tees |
| ASTM A234 WP22 Alloy Steel Fabricated Tee |
ASTM A234 WP22 Alloy Steel End Cap |
| ASTM A234 WP22 Alloy Steel Reducer |
ASTM A234 WP22 Alloy Steel Seamless Fittings |
| ASTM A234 WP22 Alloy Steel Concentric Reducer |
ASTM A234 WP22 Alloy Steel Pipe Nipple |
| ASTM A234 WP22 Alloy Steel Eccentric Reducer |
ASTM A234 WP22 Alloy Steel 5D Elbow |
| ASTM A234 WP22 Alloy Steel 3D Elbow |
ASTM A234 WP22 Alloy Steel Welded Pipe Fittings |
4. Chemical Composition of Grade WP22 Alloy Steel Butt weld Fittings
| Grade |
C |
Mn |
Si |
S |
P |
Cr |
Mo |
| A234 WP22 |
0.05-0.15 |
0.3-0.6 |
≤0.5 |
≤0.04 |
≤0.04 |
2-2.5 |
0.87-1.13 |
5. Mechanical Properties of ASTM A234 Alloy Steel WP22 Butt weld Pipe Fittings
| Grade |
Tensile Strength (Mpa) |
Yield Strength (Mpa) |
Elongation % |
| A234 WP22 |
415-585 |
≥205 |
≥20 |
6. ASTM A234 WP22 Alloy Steel Buttweld Fittings Available Types
| Alloy Steel WP22 Pipe Fittings |
Alloy Steel WP22 Buttweld Pipe Fittings |
| Alloy Steel WP22 Seamless Pipe Fittings |
Alloy Steel WP22 Welded Pipe Fittings |
| Alloy Steel A234 WP22 Pipe Elbow |
Alloy Steel 2 1/4Cr-1Mo Buttweld Tee |
| Chrome Moly WP22 Buttweld Reducer Suppliers |
ANSI WP22 Alloy Steel Pipe Fittings |
| Chrome Moly A234 WP22 Stubends Dealer |
ASTM A234 WP22 Pipe Fittings Exporter |
| Alloy Steel WP22 Butt weld Fittings Stockholder |
Steel WP22 Pipe End Cap Distributors |
| Alloy Steel WP22 45deg.Elbow |
A234 WP22 90deg. LR Elbow Manufacturer |
| Alloy Steel Grade WP22 Pipe Tee |
Alloy Steel ASTM A234 WP22 Cross |
| Alloy Steel WP22 Buttweld Reducing Nipple |
Alloy WP22 Short Radius Elbow |
| ANSI B16.9 ASTM A234 WP22 Buttweld Fitting |
A234 WP22 End Pipe Cap Stockist |
| ASTM A234 WP22 Welded Pipe Fittings |
Alloy Steel ASME SA234 WP22 Pipe Fittings |
